古人与：工欲善其事，必先利其器

一、新建工程

请看这个帖子:  https://www.iceasy.com/review/1894585782601457665

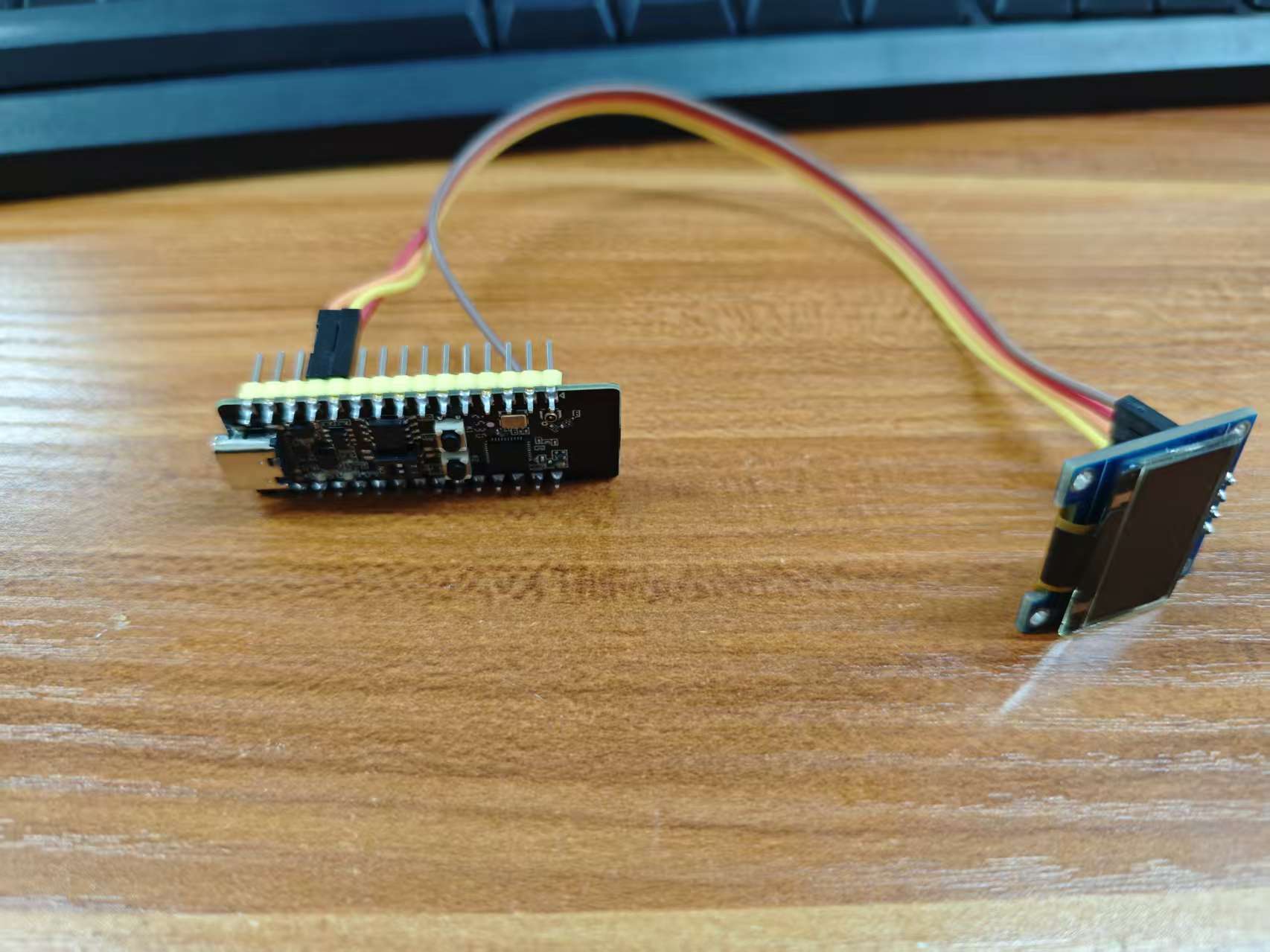

二、硬件连接

咱这个V2版本的可以直接使用USB下载了，不需要额外的串口助手

OLED  -------> 开发板

VCC    --------> VCC

SCL    --------> PB3

SDA    --------> PB4

GND   --------> GND

三、代码

void oled_i2c_delay(void)

{

uint8_t i = 0;

//for(i = 0; i<5;i++);

}

//���Ժ���

void OLED_ColorTurn( u8 i )

{

if( i == 0 )

{

OLED_WR_Byte( 0xA6, OLED_CMD ); //������ʾ

}

if( i == 1 )

{

OLED_WR_Byte( 0xA7, OLED_CMD ); //��ɫ��ʾ

}

}

//��Ļ��ת180��

void OLED_DisplayTurn( u8 i )

{

if( i == 0 )

{

OLED_WR_Byte( 0xC8, OLED_CMD ); //������ʾ

OLED_WR_Byte( 0xA1, OLED_CMD );

}

if( i == 1 )

{

OLED_WR_Byte( 0xC0, OLED_CMD ); //��ת��ʾ

OLED_WR_Byte( 0xA0, OLED_CMD );

}

}

void OLED_SDIN_Set(void)

{

gpio_bit_set(GPIOB,GPIO_PIN_4);

//GPIO_BOP(GPIOB) = GPIO_PIN_4;

oled_i2c_delay();

}

void OLED_SDIN_Clr(void)

{

gpio_bit_reset(GPIOB,GPIO_PIN_4);

//GPIO_BC(GPIOB) = GPIO_PIN_4;

oled_i2c_delay();

}

void OLED_SCLK_Set(void)

{

gpio_bit_set(GPIOB,GPIO_PIN_3);

//GPIO_BOP(GPIOB) = GPIO_PIN_3;

oled_i2c_delay();

}

void OLED_SCLK_Clr(void)

{

gpio_bit_reset(GPIOB,GPIO_PIN_3);

//GPIO_BC(GPIOB) = GPIO_PIN_3;

oled_i2c_delay();

}

//��ʼ�ź�

void I2C_Start( void )

{

OLED_SDIN_Set();

OLED_SCLK_Set();

OLED_SDIN_Clr();

OLED_SCLK_Clr();

}

//�����ź�

void I2C_Stop( void )

{

OLED_SCLK_Set();

OLED_SDIN_Clr();

OLED_SDIN_Set();

}

//�ȴ��ź���Ӧ

void I2C_WaitAck( void ) //�������źŵĵ�ƽ

{

OLED_SCLK_Set();

OLED_SCLK_Clr();

}

//д��һ���ֽ�

void Send_Byte( u8 dat )

{

u8 i;

for( i = 0; i < 8; i++ )

{

OLED_SCLK_Clr();//��ʱ���ź�����Ϊ�͵�ƽ

if( dat & 0x80 ) //��dat��8λ�����λ����д��

{

OLED_SDIN_Set();

}

else

{

OLED_SDIN_Clr();

}

OLED_SCLK_Set();//��ʱ���ź�����Ϊ�ߵ�ƽ

OLED_SCLK_Clr();//��ʱ���ź�����Ϊ�͵�ƽ

dat <<= 1;

}

}

//����һ���ֽ�

//��SSD1306д��һ���ֽڡ�

//mode:����/�����־ 0,��ʾ����;1,��ʾ����;

void OLED_WR_Byte( u8 dat, u8 mode )

{

I2C_Start();

Send_Byte( 0x78 );

I2C_WaitAck();

if( mode )

{

Send_Byte( 0x40 );

}

else

{

Send_Byte( 0x00 );

}

I2C_WaitAck();

Send_Byte( dat );

I2C_WaitAck();

I2C_Stop();

}

//����OLED��ʾ

void OLED_DisPlay_On( void )

{

OLED_WR_Byte( 0x8D, OLED_CMD ); //��ɱ�ʹ��

OLED_WR_Byte( 0x14, OLED_CMD ); //������ɱ�

OLED_WR_Byte( 0xAF, OLED_CMD ); //������Ļ

}

//�ر�OLED��ʾ

void OLED_DisPlay_Off( void )

{

OLED_WR_Byte( 0x8D, OLED_CMD ); //��ɱ�ʹ��

OLED_WR_Byte( 0x10, OLED_CMD ); //�رյ�ɱ�

OLED_WR_Byte( 0xAF, OLED_CMD ); //�ر���Ļ

}

//�����Դ浽OLED

void OLED_Refresh( void )

{

u8 i, n;

for( i = 0; i < 8; i++ )

{

OLED_WR_Byte( 0xb0 + i, OLED_CMD ); //��������ʼ��ַ

OLED_WR_Byte( 0x00, OLED_CMD ); //���õ�����ʼ��ַ

OLED_WR_Byte( 0x10, OLED_CMD ); //���ø�����ʼ��ַ

for( n = 0; n < 128; n++ )

OLED_WR_Byte( OLED_GRAM[n][i], OLED_DATA );

}

}

//��������

void OLED_Clear( void )

{

u8 i, n;

for( i = 0; i < 8; i++ )

{

for( n = 0; n < 128; n++ )

{

OLED_GRAM[n][i] = 0; //�����������

}

}

OLED_Refresh();//������ʾ

}

//����

//x:0~127

//y:0~63

void OLED_DrawPoint( u8 x, u8 y ,u8 mode)

{

u8 i, m, n;

i = y / 8;

m = y % 8;

n = 1 << m;

if(mode)OLED_GRAM[x][i] |= n;

else OLED_GRAM[x][i] &= ~n;

}

//���һ����

//x:0~127

//y:0~63

void OLED_ClearPoint( u8 x, u8 y )

{

u8 i, m, n;

i = y / 8;

m = y % 8;

n = 1 << m;

OLED_GRAM[x][i] = ~OLED_GRAM[x][i];

OLED_GRAM[x][i] |= n;

OLED_GRAM[x][i] = ~OLED_GRAM[x][i];

}

//����

//x:0~128

//y:0~64

void OLED_DrawLine( u8 x1, u8 y1, u8 x2, u8 y2 )

{

u8 i, k, k1, k2, y0;

if( ( x1 < 0 ) || ( x2 > 128 ) || ( y1 < 0 ) || ( y2 > 64 ) || ( x1 > x2 ) || ( y1 > y2 ) )return;

if( x1 == x2 ) //������

{

for( i = 0; i < ( y2 - y1 ); i++ )

{

OLED_DrawPoint( x1, y1 + i ,1);

}

}

else if( y1 == y2 ) //������

{

for( i = 0; i < ( x2 - x1 ); i++ )

{

OLED_DrawPoint( x1 + i, y1 ,1);

}

}

else //���

{

k1 = y2 - y1;

k2 = x2 - x1;

k = k1 * 10 / k2;

for( i = 0; i < ( x2 - x1 ); i++ )

{

OLED_DrawPoint( x1 + i, y1 + i * k / 10 ,1);

}

}

}

//x,y:Բ������

//r:Բ�İ뾶

void OLED_DrawCircle( u8 x, u8 y, u8 r )

{

int a, b, num;

a = 0;

b = r;

while( 2 * b * b >= r * r )

{

OLED_DrawPoint( x + a, y - b ,1);

OLED_DrawPoint( x - a, y - b ,1);

OLED_DrawPoint( x - a, y + b ,1);

OLED_DrawPoint( x + a, y + b ,1);

OLED_DrawPoint( x + b, y + a ,1);

OLED_DrawPoint( x + b, y - a ,1);

OLED_DrawPoint( x - b, y - a ,1);

OLED_DrawPoint( x - b, y + a ,1);

a++;

num = ( a * a + b * b ) - r * r; //���㻭�ĵ���Բ�ĵľ���

if( num > 0 )

{

b--;

a--;

}

}

}

//��ָ��λ����ʾһ���ַ�,���������ַ�

//x:0~127

//y:0~63

//size:ѡ������ 12/16/24

void OLED_ShowChar( u8 x, u8 y, u8 chr, u8 size1 , u8 mode)

{

u8 i, m, temp, size2, chr1;

u8 y0 = y;

size2 = ( size1 / 8 + ( ( size1 % 8 ) ? 1 : 0 ) ) * ( size1 / 2 ); //�õ�����һ���ַ���Ӧ������ռ���ֽ���

chr1 = chr - ' '; //����ƫ�ƺ��ֵ

for( i = 0; i < size2; i++ )

{

if( size1 == 12 )

{

temp = asc2_1206[chr1][i]; //����1206����

}

else if( size1 == 16 )

{

temp = asc2_1608[chr1][i]; //����1608����

}

else if( size1 == 24 )

{

temp = asc2_2412[chr1][i]; //����2412����

}

else return;

for( m = 0; m < 8; m++ ) //�����

{

if( temp & 0x80 )OLED_DrawPoint( x, y ,mode);

//else OLED_ClearPoint( x, y);

else OLED_DrawPoint( x, y ,!mode);

temp <<= 1;

y++;

if( ( y - y0 ) == size1 )

{

y = y0;

x++;

break;

}

}

}

}

//��ʾ�ַ���

//x,y:�������

//size1:�����С

//*chr:�ַ�����ʼ��ַ

void OLED_ShowString( u8 x, u8 y, u8* chr, u8 size1,u8 mode )

{

while( ( *chr >= ' ' ) && ( *chr <= '~' ) ) //�ж��Dz��ǷǷ��ַ�!

{

OLED_ShowChar( x, y, *chr, size1,mode );

x += size1 / 2;

if( x > 128 - size1 ) //����

{

x = 0;

y += 2;

}

chr++;

}

}

//m^n

u32 OLED_Pow( u8 m, u8 n )

{

u32 result = 1;

while( n-- )

{

result *= m;

}

return result;

}

////��ʾ2������

////x,y :�������

////len :���ֵ�λ��

////size:�����С

void OLED_ShowNum( u8 x, u8 y, u32 num, u8 len, u8 size1, u8 mode)

{

u8 t, temp;

for( t = 0; t < len; t++ )

{

temp = ( num / OLED_Pow( 10, len - t - 1 ) ) % 10;

if( temp == 0 )

{

OLED_ShowChar( x + ( size1 / 2 )*t, y, '0', size1, mode );

}

else

{

OLED_ShowChar( x + ( size1 / 2 )*t, y, temp + '0', size1,mode );

}

}

}

//��ʾ����

//x,y:�������

//num:���ֶ�Ӧ�����

void OLED_ShowChinese( u8 x, u8 y, u8 num, u8 size1, u8 mode )

{

u8 i, m, n = 0, temp, chr1;

u8 x0 = x, y0 = y;

u8 size3 = size1 / 8;

while( size3-- )

{

chr1 = num * size1 / 8 + n;

n++;

for( i = 0; i < size1; i++ )

{

if( size1 == 16 )

{

temp = Hzk1[chr1][i]; //����16*16����

}

else if( size1 == 24 )

{

temp = Hzk2[chr1][i]; //����24*24����

}

else if( size1 == 32 )

{

temp = Hzk3[chr1][i]; //����32*32����

}

else if( size1 == 64 )

{

temp = Hzk4[chr1][i]; //����64*64����

}

else return;

for( m = 0; m < 8; m++ )

{

if( temp & 0x01 )OLED_DrawPoint( x, y ,mode);

//else OLED_ClearPoint( x, y );

else OLED_DrawPoint( x, y ,!mode);

temp >>= 1;

y++;

}

x++;

if( ( x - x0 ) == size1 )

{

x = x0;

y0 = y0 + 8;

}

y = y0;

}

}

}

//num ��ʾ���ֵĸ���

//space ÿһ����ʾ�ļ��

void OLED_ScrollDisplay( u8 num, u8 space , u8 mode)

{

u8 i, n, t = 0, m = 0, r;

while( 1 )

{

if( m == 0 )

{

OLED_ShowChinese( 128, 24, t, 16, mode); //д��һ�����ֱ�����OLED_GRAM[][]������

t++;

}

if( t == num )

{

for( r = 0; r < 16 * space; r++ ) //��ʾ���

{

for( i = 0; i < 144; i++ )

{

for( n = 0; n < 8; n++ )

{

OLED_GRAM[i - 1][n] = OLED_GRAM[i][n];

}

}

OLED_Refresh();

}

t = 0;

}

m++;

if( m == 16 )

{

m = 0;

}

for( i = 0; i < 144; i++ ) //ʵ������

{

for( n = 0; n < 8; n++ )

{

OLED_GRAM[i - 1][n] = OLED_GRAM[i][n];

}

}

OLED_Refresh();

}

}

//����д�����ݵ���ʼλ��

void OLED_WR_BP( u8 x, u8 y )

{

OLED_WR_Byte( 0xb0 + y, OLED_CMD ); //��������ʼ��ַ

OLED_WR_Byte( ( ( x & 0xf0 ) >> 4 ) | 0x10, OLED_CMD );

OLED_WR_Byte( ( x & 0x0f ) | 0x01, OLED_CMD );

}

//x0,y0���������

//x1,y1���յ�����

//BMP[]��Ҫд���ͼƬ����

void OLED_ShowPicture( u8 x0, u8 y0, u8 x1, u8 y1, u8 BMP[] )

{

u32 j = 0;

u8 x = 0, y = 0;

if( y % 8 == 0 )y = 0;

else y += 1;

for( y = y0; y < y1; y++ )

{

OLED_WR_BP( x0, y );

for( x = x0; x < x1; x++ )

{

OLED_WR_Byte( BMP[j], OLED_DATA );

j++;

}

}

}

//OLED�ij�ʼ��

void OLED_Init( void )

{

rcu_periph_clock_enable(RCU_GPIOB);

gpio_mode_set(GPIOB, GPIO_MODE_OUTPUT, GPIO_PUPD_NONE,GPIO_PIN_4|GPIO_PIN_3);

gpio_output_options_set(GPIOB, GPIO_OTYPE_OD, GPIO_OSPEED_MAX,GPIO_PIN_4|GPIO_PIN_3);

OLED_SDIN_Set();

OLED_SCLK_Set();

// OLED_RST_Set();

// delay_ms(100);

// OLED_RST_Clr();//��λ

// delay_ms(200);

// OLED_RST_Set();

// OLED_DC_Clr();

delay_1ms(2000);

OLED_WR_Byte( 0xAE, OLED_CMD ); //--turn off oled panel

OLED_WR_Byte( 0x00, OLED_CMD ); //---set low column address

OLED_WR_Byte( 0x10, OLED_CMD ); //---set high column address

OLED_WR_Byte( 0x40, OLED_CMD ); //--set start line address Set Mapping RAM Display Start Line (0x00~0x3F)

OLED_WR_Byte( 0x81, OLED_CMD ); //--set contrast control register

OLED_WR_Byte( 0xCF, OLED_CMD ); // Set SEG Output Current Brightness

OLED_WR_Byte( 0xA1, OLED_CMD ); //--Set SEG/Column Mapping 0xa0���ҷ��� 0xa1����

OLED_WR_Byte( 0xC8, OLED_CMD ); //Set COM/Row Scan Direction 0xc0���·��� 0xc8����

OLED_WR_Byte( 0xA6, OLED_CMD ); //--set normal display

OLED_WR_Byte( 0xA8, OLED_CMD ); //--set multiplex ratio(1 to 64)

OLED_WR_Byte( 0x3f, OLED_CMD ); //--1/64 duty

OLED_WR_Byte( 0xD3, OLED_CMD ); //-set display offset Shift Mapping RAM Counter (0x00~0x3F)

OLED_WR_Byte( 0x00, OLED_CMD ); //-not offset

OLED_WR_Byte( 0xd5, OLED_CMD ); //--set display clock divide ratio/oscillator frequency

OLED_WR_Byte( 0x80, OLED_CMD ); //--set divide ratio, Set Clock as 100 Frames/Sec

OLED_WR_Byte( 0xD9, OLED_CMD ); //--set pre-charge period

OLED_WR_Byte( 0xF1, OLED_CMD ); //Set Pre-Charge as 15 Clocks & Discharge as 1 Clock

OLED_WR_Byte( 0xDA, OLED_CMD ); //--set com pins hardware configuration

OLED_WR_Byte( 0x12, OLED_CMD );

OLED_WR_Byte( 0xDB, OLED_CMD ); //--set vcomh

OLED_WR_Byte( 0x40, OLED_CMD ); //Set VCOM Deselect Level

OLED_WR_Byte( 0x20, OLED_CMD ); //-Set Page Addressing Mode (0x00/0x01/0x02)

OLED_WR_Byte( 0x02, OLED_CMD ); //

OLED_WR_Byte( 0x8D, OLED_CMD ); //--set Charge Pump enable/disable

OLED_WR_Byte( 0x14, OLED_CMD ); //--set(0x10) disable

OLED_WR_Byte( 0xA4, OLED_CMD ); // Disable Entire Display On (0xa4/0xa5)

OLED_WR_Byte( 0xA6, OLED_CMD ); // Disable Inverse Display On (0xa6/a7)

OLED_Clear();

OLED_WR_Byte( 0xAF, OLED_CMD );

}

使用软件模拟一定要注意，不要使用GPIO_BC(gpiox)、GPIO_BOP(gpiox)  还有gpio_bit_write(uint32_t gpio_periph, uint32_t pin, bit_status bit_value);千万不要用，要用就用下面这两个，坑死人啊

void gpio_bit_set(uint32_t gpio_periph, uint32_t pin);

/* reset GPIO pin bit */

void gpio_bit_reset(uint32_t gpio_periph, uint32_t pin);
