AS6221 与 ESP8266 I2C 通讯读取数据

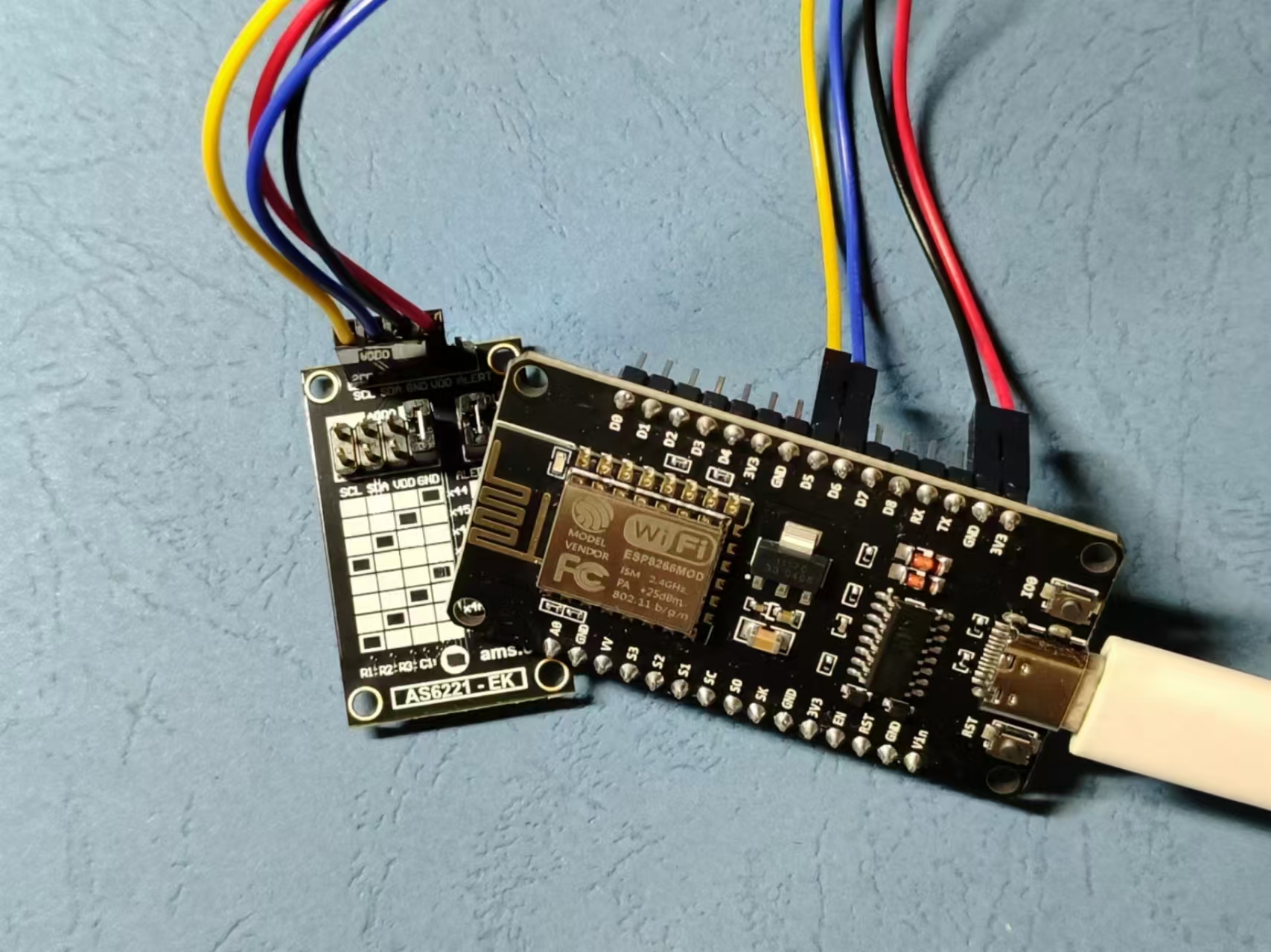

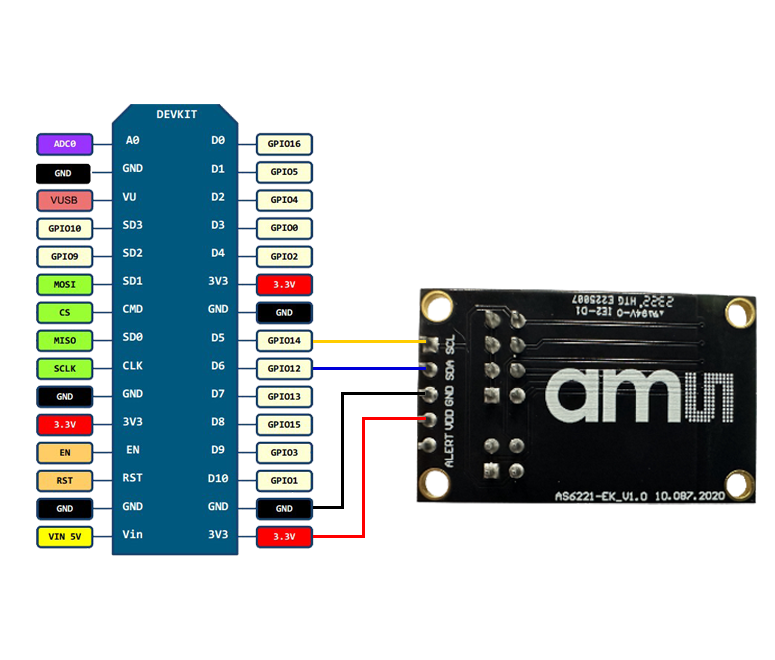

接线图

将 ESP8266 的 D5 引脚作为 SCL 时钟线，D6 引脚作为 SDA 数据线，连接到 AS6221

AS6221 Arduino 库

可以在 Github 找到：Chasbrot/AS6221: Arduino library for the AMS AS6221 temperature sensor

这个库可直接用在 ESP8266 上

程序编写

简单编写了一个程序，可以通过网页中的按钮切换 AS6221 的模式（连续读取、休眠、单次读取）

#include "AS6221.h"
#include <Wire.h>
#include <ESP8266WiFi.h>
#include <ESP8266WiFiMulti.h>
#include <ESP8266WebServer.h>

AS6221 temp;

ESP8266WiFiMulti wifiMulti;

ESP8266WebServer esp8266_server(80);

unsigned int as6221_mode = 0;

void setup() {
  Wire.begin(D6, D5);
  Serial.begin(9600);

  wifiMulti.addAP("CMCC-xxx", "password");
  Serial.println("Connecting Wifi...");
  int i = 0;
  while(wifiMulti.run() != WL_CONNECTED) {
    delay(1000);
    Serial.print(i++);
    Serial.print(' ');
  }

  Serial.println('\n');
  Serial.print("Connected to ");
  Serial.println(WiFi.SSID());
  Serial.print("IP address:\t");
  Serial.println(WiFi.localIP());
  Serial.println("Please click the button to start reading data...");

  esp8266_server.begin();
  esp8266_server.on("/", HTTP_GET, handleRoot);
  esp8266_server.on("/MODE", HTTP_POST, handleMODE);
  esp8266_server.onNotFound(handleNotFound);

  as6221_config_t conf = {
    .cr = AS6221_CONV_RATE4,
    .state = AS6221_STATE_ACTIVE,
    .alert_mode = AS6221_ALERT_INTERRUPT,
    .alert_polarity = AS6221_ALERT_ACTIVE_LOW,
    .cf = AS6221_CONSEC_FAULTS2
  };

  temp.init(AS6221_DEFAULT_ADDRESS, conf);
  temp.setAlertLimits(27, 29);
}

void loop() {
  delay(1000);
  esp8266_server.handleClient();
  if(as6221_mode % 4 != 0)
    Serial.println(temp.getTemp(), 7);
}

void handleRoot() {
  esp8266_server.send(200, "text/html", "<form action=\"/MODE\" method=\"POST\"><input type=\"submit\" style=\"height: 50px; display: block; margin: auto;\" value=\"Change Mode\"></form>");
}

void handleMODE() {
  as6221_mode++;
  if(as6221_mode % 4 == 1) {        // 默认模式（连续读取）
    temp.ccMode();
    Serial.println("Default Mode");
  }
  else if(as6221_mode % 4 == 2) {   // 休息模式
    temp.sleepMode();
    Serial.println("Sleep Mode");
  }
  else if(as6221_mode % 4 == 3) {   // 单次读取
    temp.triggerSingleShot();
    Serial.print("Trigger Single Shot: ");
    Serial.println(temp.getTemp(), 7);
    as6221_mode++;
  }

  esp8266_server.sendHeader("Location","/");
  esp8266_server.send(303);
}

void handleNotFound() {
  esp8266_server.send(404, "text/plain", "404: Not found");
}

在 AS6221 评估板上有两组跳线帽，按照丝印修改跳线帽的位置可以修改 AS6221 的地址，默认情况下的地址是 0x48，可在初始化时修改

void init(uint8_t address, as6221_config_t conf)

效果图

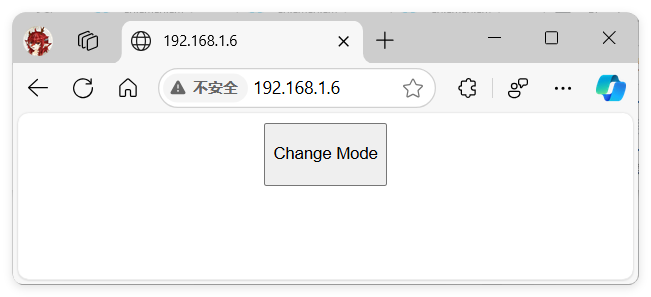

烧录程序到 ESP8266 后，开发板连接到 WiFi 会自动启用网站服务，进入串口监视器中显示的 IP 即可看到按钮

Connected to CMCC-422
IP address:    192.168.1.6
Please click the button to start reading data...

点击按钮可以改变模式，分别是：连续读取（默认）、休眠模式、单次读取

Connected to CMCC-422
IP address:    192.168.1.6
Please click the button to start reading data...

Default Mode
24.5781250
24.5781250
24.5546875
24.5390625
24.5390625

Sleep Mode
24.5312500
24.5312500
24.5312500
24.5312500
24.5312500

Trigger Single Shot: 24.5312500

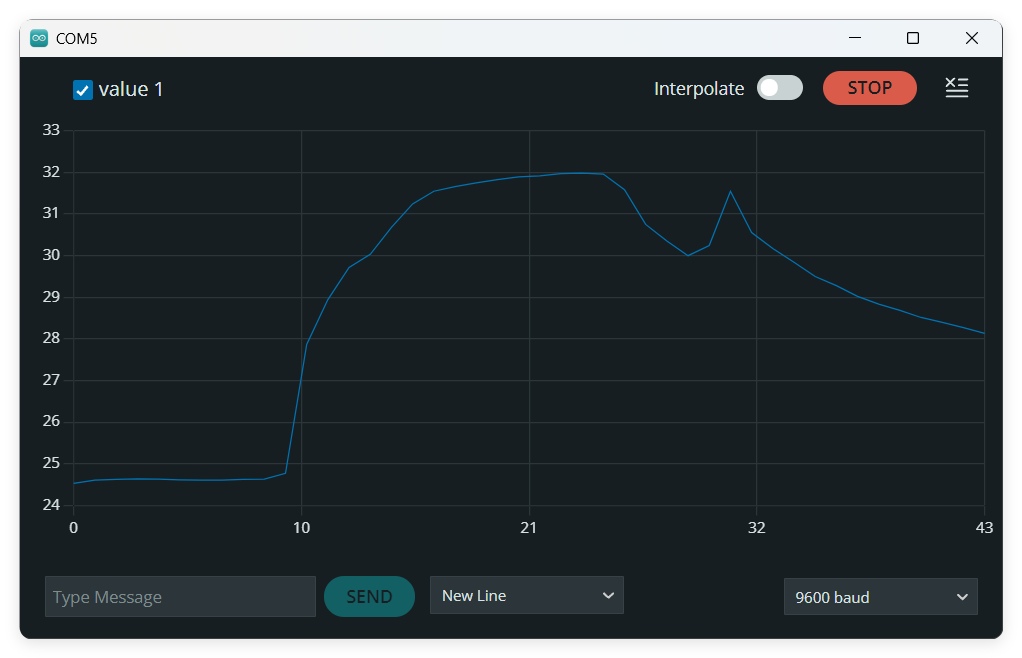

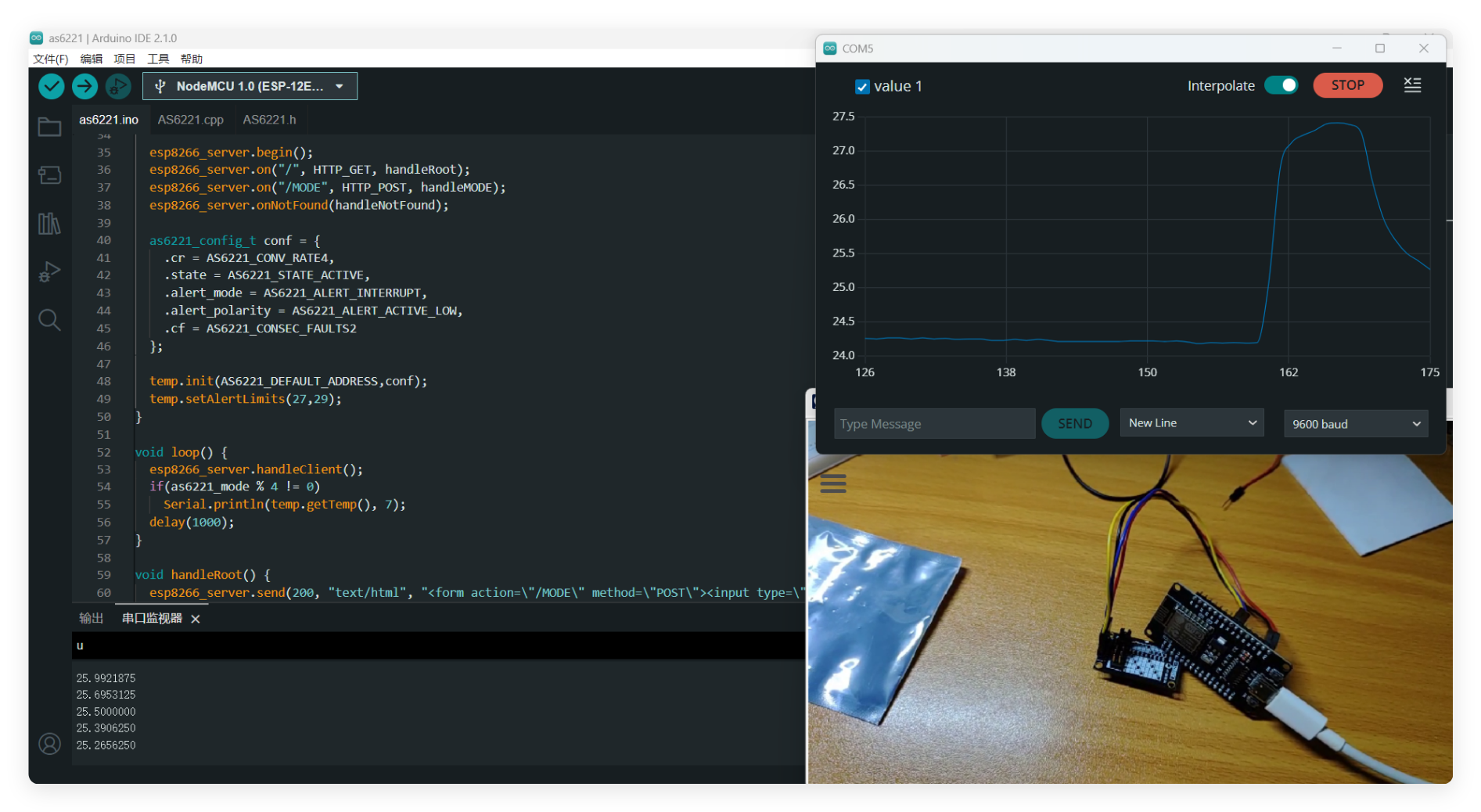

串口绘图仪绘制的温度曲线：

下载 Demo

以 GUN GPLv3 协议发布，点此下载：AS6221 Demo
