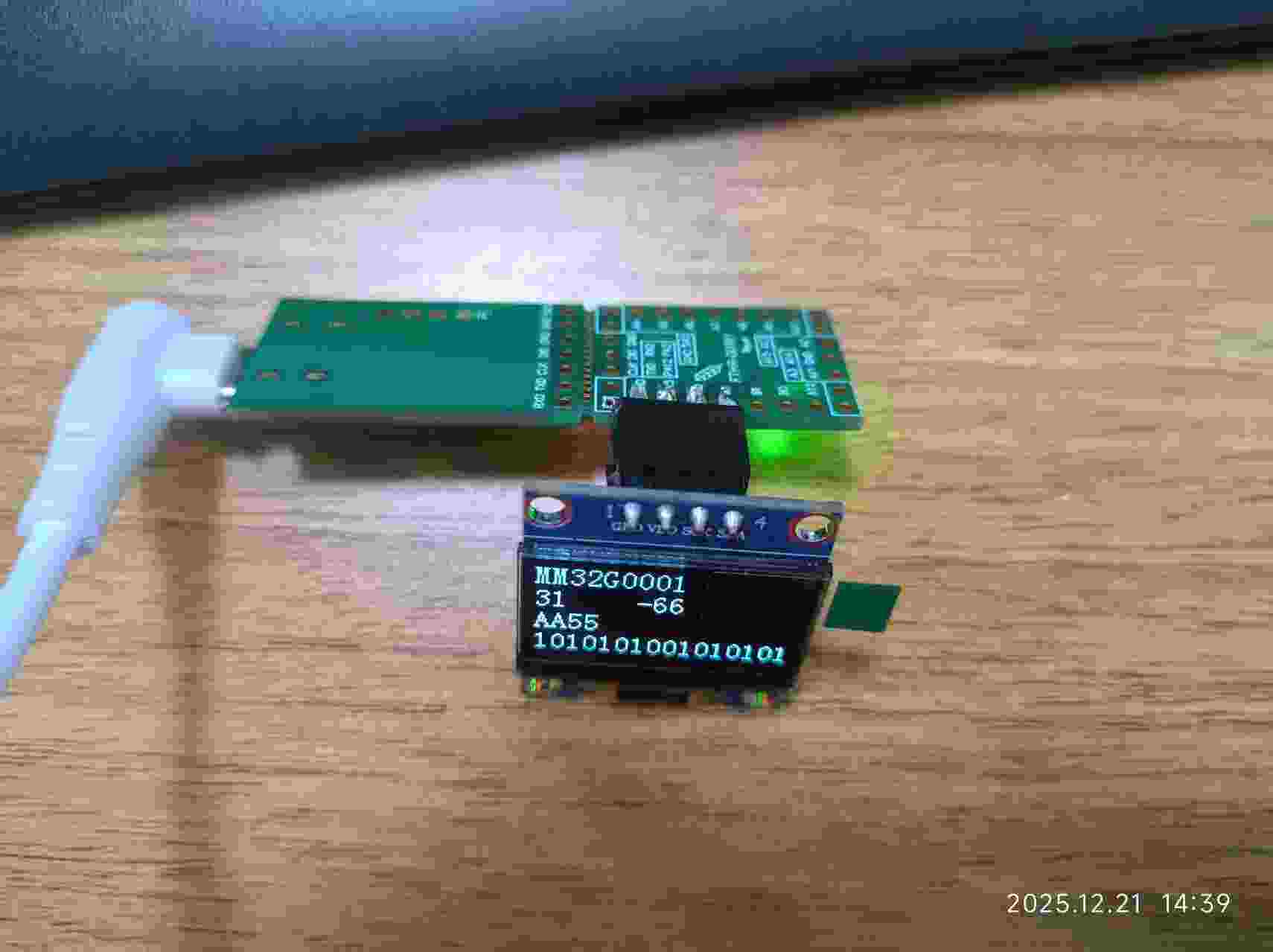

灵动微电子FTHR-G0001单片机开发板点屏

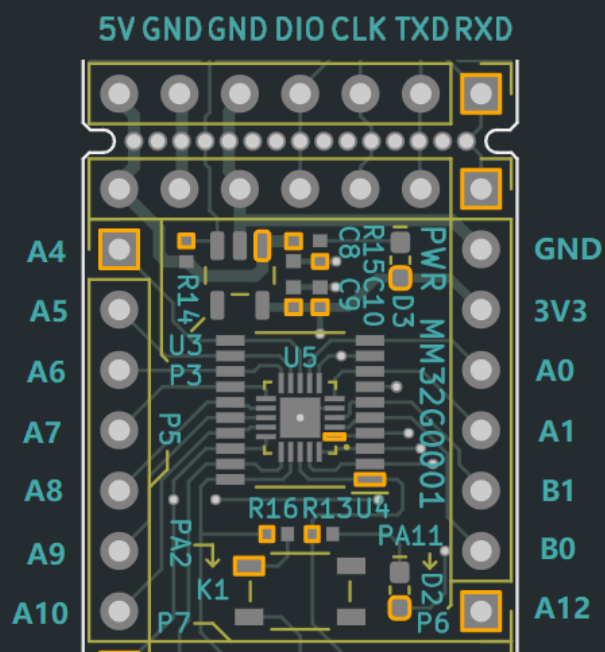

灵动微电子FTHR-G0001单片机开发板主控为TSSOP20的MM32G0001A1T(v)

两脚复用功能对应为IIC1的SCL和SDA,下篇发硬件IIC的oled程序

GPIO模拟IIC移植简洁快速,仅需初始化好GPIO即可使用驱动程序的接口而硬件IIC

程序如下

#include "oled.h"
#include "OLED_Font.h"
#include "platform.h"

#define OLED_W_SCL(x)   GPIO_WriteBit(GPIOA, GPIO_Pin_0, (BitAction)(x))
#define OLED_W_SDA(x)   GPIO_WriteBit(GPIOA, GPIO_Pin_1, (BitAction)(x))

static void OLED_I2C_Init(void);
static void OLED_I2C_Start(void);
static void OLED_I2C_Stop(void);
static void OLED_I2C_SendByte(uint8_t Byte);
static void OLED_WriteCommand(uint8_t Command);
static void OLED_WriteData(uint8_t Data);
static void OLED_SetCursor(uint8_t Y, uint8_t X);

static void OLED_I2C_Init(void)
{
    RCC_AHBPeriphClockCmd(RCC_AHBENR_GPIOA, ENABLE);

    GPIO_InitTypeDef GPIO_InitStructure;
    GPIO_InitStructure.GPIO_Pin   = GPIO_Pin_0 | GPIO_Pin_1;
    GPIO_InitStructure.GPIO_Speed = GPIO_Speed_50MHz;
    GPIO_InitStructure.GPIO_Mode  = GPIO_Mode_Out_OD;
    GPIO_Init(GPIOA, &GPIO_InitStructure);

    OLED_W_SCL(1);
    OLED_W_SDA(1);
}

static void OLED_I2C_Start(void)
{
    OLED_W_SDA(1);
    OLED_W_SCL(1);
    OLED_W_SDA(0);
    OLED_W_SCL(0);
}

static void OLED_I2C_Stop(void)
{
    OLED_W_SDA(0);
    OLED_W_SCL(1);
    OLED_W_SDA(1);
}

static void OLED_I2C_SendByte(uint8_t Byte)
{
    uint8_t i;
    for (i = 0; i < 8; i++)
    {
        OLED_W_SDA(Byte & (0x80 >> i));
        OLED_W_SCL(1);
        OLED_W_SCL(0);
    }
    OLED_W_SCL(1);
    OLED_W_SCL(0);
}


static void OLED_WriteCommand(uint8_t Command)
{
    OLED_I2C_Start();
    OLED_I2C_SendByte(0x78); // 从机地址
    OLED_I2C_SendByte(0x00); // 写命令
    OLED_I2C_SendByte(Command);
    OLED_I2C_Stop();
}

static void OLED_WriteData(uint8_t Data)
{
    OLED_I2C_Start();
    OLED_I2C_SendByte(0x78);
    OLED_I2C_SendByte(0x40); // 写数据
    OLED_I2C_SendByte(Data);
    OLED_I2C_Stop();
}

static void OLED_SetCursor(uint8_t Y, uint8_t X)
{
    OLED_WriteCommand(0xB0 | Y);
    OLED_WriteCommand(0x10 | ((X & 0xF0) >> 4));
    OLED_WriteCommand(0x00 | (X & 0x0F));
}

void OLED_Clear(void)
{
    uint8_t j, i;
    for (j = 0; j < 8; j++)
    {
        OLED_SetCursor(j, 0);
        for (i = 0; i < 128; i++)
            OLED_WriteData(0x00);
    }
}

void OLED_ShowChar(uint8_t Line, uint8_t Column, char Char)
{
    uint8_t i;
    OLED_SetCursor((Line - 1) * 2, (Column - 1) * 8);
    for (i = 0; i < 8; i++)
        OLED_WriteData(OLED_F8x16[Char - ' '][i]);
    OLED_SetCursor((Line - 1) * 2 + 1, (Column - 1) * 8);
    for (i = 0; i < 8; i++)
        OLED_WriteData(OLED_F8x16[Char - ' '][i + 8]);
}

void OLED_ShowString(uint8_t Line, uint8_t Column, char *String)
{
    uint8_t i;
    for (i = 0; String[i] != '\0'; i++)
        OLED_ShowChar(Line, Column + i, String[i]);
}

static uint32_t OLED_Pow(uint32_t X, uint32_t Y)
{
    uint32_t Result = 1;
    while (Y--) Result *= X;
    return Result;
}

void OLED_ShowNum(uint8_t Line, uint8_t Column, uint32_t Number, uint8_t Length)
{
    uint8_t i;
    for (i = 0; i < Length; i++)
        OLED_ShowChar(Line, Column + i,
                      (Number / OLED_Pow(10, Length - i - 1) % 10) + '0');
}

void OLED_ShowSignedNum(uint8_t Line, uint8_t Column, int32_t Number, uint8_t Length)
{
    uint8_t i;
    uint32_t Number1;
    if (Number >= 0)
    {
        OLED_ShowChar(Line, Column, '+');
        Number1 = Number;
    }
    else
    {
        OLED_ShowChar(Line, Column, '-');
        Number1 = -Number;
    }
    for (i = 0; i < Length; i++)
        OLED_ShowChar(Line, Column + i + 1,
                      (Number1 / OLED_Pow(10, Length - i - 1) % 10) + '0');
}

void OLED_ShowHexNum(uint8_t Line, uint8_t Column, uint32_t Number, uint8_t Length)
{
    uint8_t i, SingleNumber;
    for (i = 0; i < Length; i++)
    {
        SingleNumber = Number / OLED_Pow(16, Length - i - 1) % 16;
        if (SingleNumber < 10)
            OLED_ShowChar(Line, Column + i, SingleNumber + '0');
        else
            OLED_ShowChar(Line, Column + i, SingleNumber - 10 + 'A');
    }
}

void OLED_ShowBinNum(uint8_t Line, uint8_t Column, uint32_t Number, uint8_t Length)
{
    uint8_t i;
    for (i = 0; i < Length; i++)
        OLED_ShowChar(Line, Column + i,
                      (Number / OLED_Pow(2, Length - i - 1) % 2) + '0');
}

void OLED_Init(void)
{
    uint32_t i, j;
    for (i = 0; i < 1000; i++)
        for (j = 0; j < 1000; j++);

    OLED_I2C_Init();

    OLED_WriteCommand(0xAE);
    OLED_WriteCommand(0xD5); OLED_WriteCommand(0x80);
    OLED_WriteCommand(0xA8); OLED_WriteCommand(0x3F);
    OLED_WriteCommand(0xD3); OLED_WriteCommand(0x00);
    OLED_WriteCommand(0x40);
    OLED_WriteCommand(0xA1);
    OLED_WriteCommand(0xC8);
    OLED_WriteCommand(0xDA); OLED_WriteCommand(0x12);
    OLED_WriteCommand(0x81); OLED_WriteCommand(0xCF);
    OLED_WriteCommand(0xD9); OLED_WriteCommand(0xF1);
    OLED_WriteCommand(0xDB); OLED_WriteCommand(0x30);
    OLED_WriteCommand(0xA4);
    OLED_WriteCommand(0xA6);
    OLED_WriteCommand(0x8D); OLED_WriteCommand(0x14);
    OLED_WriteCommand(0xAF);

    OLED_Clear();
}
