[GD32VW553-IOT_V2] 边缘 AI 推理与物联网状态监测MQTT终端简单实现

分享作者：EricWang
评测品牌：萤火工场
评测型号：GD32VW553-IOT-V2
发布时间：2026-07-23 09:39:47
1
视频链接
https://www.bilibili.com/video/BV1CwKU6ZEe4/?vd_source=ac74f69d64402a9480a35974f2d056bb
概要
本项目基于兆易创新 GD32VW553 无线微控制器，构建了一套集本地神经网络推理、Wi-Fi 局域网通信、HTTP 可视化交互、MQTT 状态上报和芯片温度监测于一体的轻量级边缘智能终端。
开源口碑分享内容

1. 前言

GD32VW553是一款集成RISC-V处理器、2.4 GHz Wi-Fi、BLE、片上Flash、SRAM以及多种外设接口的无线微控制器。该芯片最高运行频率为160 MHz，并支持浮点和DSP扩展指令，为轻量级神经网络、无线通信与实时控制功能的融合提供了较好的硬件基础。基于这一特点，本项目以GD32VW553为核心主控，尝试在单芯片资源条件下完成从底层驱动、FreeRTOS任务调度、Wi-Fi网络接入，到HTTP交互、NMSIS-NN模型推理、ADC温度采集及MQTT状态发布的完整部署流程。

本评测报告将重点评估GD32VW553在资源受限环境下同时承载无线网络、Web服务、物联网通信和轻量级神经网络推理任务的可行性。

2. 环境配置

2.1 工具链

从文档上看，GD32VW553使用了nuclei N307内核，核心配置为：

CPU 架构：RISC-V RV32
主频：160 MHz
ABI：ilp32f
FPU：单精度浮点
DSP：Packed-SIMD / Xxldsp
指令扩展：
rv32imafc
zba / zbb / zbc / zbs
xxldsp
Debug: JTAG/cJTAG

因此可以直接下载uclei工具链

编译参数为：

-march=rv32imafc_zba_zbb_zbc_zbs_xxldsp
-mabi=ilp32f

其中，NMSIS-NN 主要利用定点运算、SIMD 指令和优化卷积内核提升神经网络推理效率。

2.2  OpenOCD调试器

GDBuilder使用OpenOCD，实现代码的烧录以及调试。仿照其cfg，我们可以使用OpenOCD，直接将其移植到VSCode中

#
# GigaDevice GD32VW55x target
#
adapter driver cmsis-dap

adapter speed     4000
reset_config trst_only
adapter srst pulse_width 100

transport select jtag

set _CHIPNAME riscv
jtag newtap $_CHIPNAME cpu -irlen 5 -expected-id 0x10307a6d

set _TARGETNAME $_CHIPNAME.cpu
target create $_TARGETNAME riscv -chain-position $_TARGETNAME
$_TARGETNAME configure -work-area-phys 0x20000000 -work-area-size 20480 -work-area-backup 0


# Work-area is a space in RAM used for flash programming
if { [info exists WORKAREASIZE] } {
   set _WORKAREASIZE $WORKAREASIZE
} else {
   set _WORKAREASIZE 0x5000
}

# Allow overriding the Flash bank size
if { [info exists FLASH_SIZE] } {
    set _FLASH_SIZE $FLASH_SIZE
} else {
    # autodetect size
    set _FLASH_SIZE 0
}

# flash size will be probed
set _FLASHNAME $_CHIPNAME.flash

flash bank $_FLASHNAME gd32vw55x 0x08000000 0x400000 0 0 $_TARGETNAME
riscv set_reset_timeout_sec 1
init

halt
{
    "version": "2.0.0",
    "tasks": [
        {
            "label": "flash",
            "type": "shell",
            "command": "D:/Projects/gd32/workspace/gd32vm553/riscv_toolchains/openocd_1.0.2.202606101542/bin/openocd.exe",
            "args": [
                "-f", "openocd_gdlink.cfg",
                "-c", "halt; flash write_image erase build/gcc-release/edge_ai_web.elf; verify_image build/gcc-release/edge_ai_web.elf; reset run; exit"
            ],
            "group": {
                "kind": "build",
                "isDefault": true
            },
            "problemMatcher": []
        }
    ]
}

将JTAG连接到调试器，测试一下代码的下载与调试

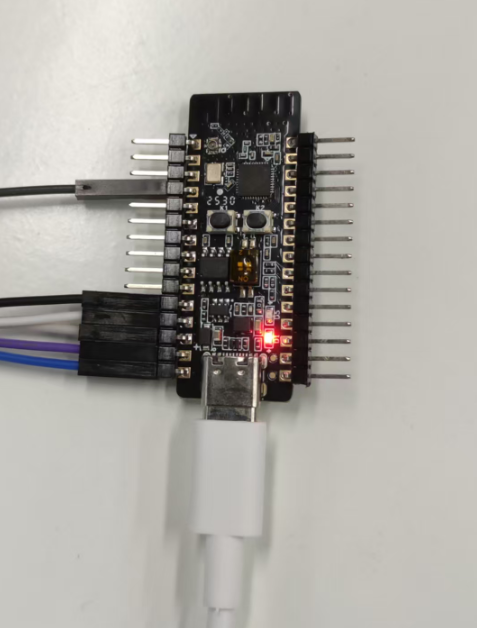

硬件连线

 PS: > D:/Projects/gd32/workspace/gd32vm553/riscv_toolchains/openocd_1.0.2.202606101542/bin/openocd.exe -f openocd_gdlink.cfg -c 'halt; flash write_image erase build/gcc-release/edge_ai_web.elf; verify_image build/gcc-release/edge_ai_web.elf; reset run; exit'
xPack Open On-Chip Debugger 0.12.0+dev1.14.1-01850-geb6f2745b-dirty (2026-06-09-13:04)
Licensed under GNU GPL v2
For bug reports, read
        http://openocd.org/doc/doxygen/bugs.html
Info : CMSIS-DAP: SWD supported
Info : CMSIS-DAP: JTAG supported
Info : CMSIS-DAP: Atomic commands supported
Info : CMSIS-DAP: FW Version = 0254
Info : CMSIS-DAP: Serial# = 110136024420312043525138313030313932303697969903
Info : CMSIS-DAP: Interface Initialised (JTAG)
Info : SWCLK/TCK = 1 SWDIO/TMS = 1 TDI = 1 TDO = 0 nTRST = 0 nRESET = 1
Info : CMSIS-DAP: Interface ready
Info : clock speed 4000 kHz
Info : cmsis-dap JTAG TLR_RESET
Info : cmsis-dap JTAG TLR_RESET
Info : JTAG tap: riscv.cpu tap/device found: 0x10307a6d (mfg: 0x536 (Nuclei System Technology Co Ltd), part: 0x0307, ver: 0x1)
Info : JTAG tap: auto0.tap tap/device found: 0x790007a3 (mfg: 0x3d1 (GigaDevice Semiconductor (Beijing)), part: 0x9000, ver: 0x7)
Warn : AUTO auto0.tap - use "jtag newtap auto0 tap -irlen 5 -expected-id 0x790007a3"
Info : datacount=4 progbufsize=2
Info : Examined RISC-V core; found 1 harts
Info :  hart 0: XLEN=32, misa=0x4010912f
Info : [riscv.cpu] Examination succeed
Info : [riscv.cpu] starting gdb server on 3333
Info : Listening on port 3333 for gdb connections
Info : device id = 0x23030418
Warn : gd32vw55x flash size failed, probe inaccurate - assuming 4096k flash
Info : ignoring flash probed value, using configured bank size
Info : flash size = 4096kbytes
Info : GD32: Flash erase ... sector erase(0 to 121)
Info : fmc_obstat_reg = 100
Info : erase ok
Info : GD32: Flash write ... not words to write, padding with 0xff
Info : GD32: Flash write ... words to be prgrammed = 0x0001e801
Info : cmsis-dap JTAG TLR_RESET
Info : cmsis-dap JTAG TLR_RESET
Info : JTAG tap: riscv.cpu tap/device found: 0x10307a6d (mfg: 0x536 (Nuclei System Technology Co Ltd), part: 0x0307, ver: 0x1)
Info : JTAG tap: auto0.tap tap/device found: 0x790007a3 (mfg: 0x3d1 (GigaDevice Semiconductor (Beijing)), part: 0x9000, ver: 0x7)

3. 代码实现

3.1 最小系统实现

由于官方 Wi-Fi/BLE SDK 包含大量示例和完整应用框架，对于边缘 AI 场景存在代码冗余。因此项目先对 SDK 进行裁剪，仅保留FreeRTOS，BSP，WiFI/LwIP层，移除BLE协议栈，最终的主应用实现如下：


#include <stdint.h>

#include "gd32vw55x.h"
#include "gd32vw55x_platform.h"
#include "wifi_init.h"
#include "wrapper_os.h"

#include "board.h"
#include "wifi_http_app.h"

#include "FreeRTOS.h"
#include "task.h"

static void led_task(void *argument)
{
    (void)argument;

    for (;;) {
        board_led_toggle();
        vTaskDelay(pdMS_TO_TICKS(500U));
    }
}

static void monitor_task(void *argument)
{
    (void)argument;

    for (;;) {
        board_uart_write("[rtos] uptime_ms=");
        board_uart_write_u32(
            (uint32_t)(xTaskGetTickCount() * portTICK_PERIOD_MS));
        board_uart_write(" free_heap=");
        board_uart_write_u32((uint32_t)xPortGetFreeHeapSize());
        board_uart_write(" min_heap=");
        board_uart_write_u32((uint32_t)xPortGetMinimumEverFreeHeapSize());
        board_uart_write("\r\n");

        vTaskDelay(pdMS_TO_TICKS(5000U));
    }
}

static void fail_with_code(const char *stage, int code)
{
    board_uart_write("[FATAL] ");
    board_uart_write(stage);
    board_uart_write(" failed, code=");
    board_uart_write_i32((int32_t)code);
    board_uart_write("\r\n");

    edge_assert_failed(__FILE__, __LINE__, stage);
}

int main(void)
{
    int ret;

    /* Keep the same ECLIC grouping used by the vendor Wi-Fi image. */
    eclic_priority_group_set(ECLIC_PRIGROUP_LEVEL4_PRIO0);

    /* UART1 and the project LED are available for early diagnostics. */
    board_init();
    board_uart_write("\r\nedge_ai_web\r\n");
    board_uart_write("SystemCoreClock=");
    board_uart_write_u32(SystemCoreClock);
    board_uart_write(" Hz\r\n");


    sys_os_init();

    board_uart_write("[platform] init...\r\n");
    platform_init();
    board_uart_write("[platform] ready\r\n");


    board_uart_write("[wifi] init...\r\n");
    ret = wifi_init();
    if (ret != 0) {
        fail_with_code("wifi_init", ret);
    }
    board_uart_write("[wifi] init accepted, free_heap=");
    board_uart_write_u32((uint32_t)xPortGetFreeHeapSize());
    board_uart_write("\r\n");

    if (wifi_http_app_start() != 0) {
        fail_with_code("wifi_http_app_start", -1);
    }

    if (xTaskCreate(led_task,
                    "led",
                    256U,
                    NULL,
                    1U,
                    NULL) != pdPASS) {
        fail_with_code("xTaskCreate(led)", -1);
    }

    if (xTaskCreate(monitor_task,
                    "monitor",
                    384U,
                    NULL,
                    1U,
                    NULL) != pdPASS) {
        fail_with_code("xTaskCreate(monitor)", -1);
    }

    board_uart_write("[rtos] scheduler start\r\n");
    sys_os_start();

    edge_assert_failed(__FILE__, __LINE__, "sys_os_start returned");
    return 0;
}

3.1 Wi-Fi 局域网通信

参考SDK，我们将WiFi设置为STA模式，使其可以连接到无线局域网络

#include <stdint.h>

#include "FreeRTOS.h"
#include "task.h"

#include "board.h"
#include "http_server.h"
#include "mqtt_status.h"
#include "wifi_http_app.h"
#include "wifi_station_config.h"

#include "wifi_management.h"
#include "wifi_net_ip.h"
#include "wifi_init.h"
#include "wrapper_os_config.h"

#define EDGE_HTTP_STACK_WORDS 1536U
#define EDGE_HTTP_TASK_PRIO   OS_TASK_PRIORITY(0)
#define EDGE_WIFI_VIF_DEFAULT 0

static char s_sta_ssid[] = EDGE_WIFI_STA_SSID;
static char s_sta_password[] = EDGE_WIFI_STA_PASSWORD;

static void log_result(const char *operation, int result)
{
    board_uart_write(operation);
    board_uart_write(" result=");
    board_uart_write_i32((int32_t)result);
    board_uart_write("\r\n");
}

static void log_ipv4(uint32_t address)
{
    board_uart_write_u32(address & 0xFFU);
    board_uart_write(".");
    board_uart_write_u32((address >> 8) & 0xFFU);
    board_uart_write(".");
    board_uart_write_u32((address >> 16) & 0xFFU);
    board_uart_write(".");
    board_uart_write_u32((address >> 24) & 0xFFU);
}

static int connect_station(void)
{
    struct wifi_ip_addr_cfg ip_config;
    int result;

    for (;;) {
        board_uart_write("[wifi] connecting STA SSID: ");
        board_uart_write(s_sta_ssid);
        board_uart_write("\r\n");


        result = wifi_management_connect(
            s_sta_ssid,
            (s_sta_password[0] != '\0') ? s_sta_password : NULL,
            1U);

        if (result == 0) {
            result = wifi_get_vif_ip(EDGE_WIFI_VIF_DEFAULT, &ip_config);
            if ((result == 0) && (ip_config.ipv4.addr != 0U)) {
                board_uart_write("[wifi] STA connected\r\n");
                board_uart_write("[wifi] IPv4: ");
                log_ipv4(ip_config.ipv4.addr);
                board_uart_write("\r\n[wifi] gateway: ");
                log_ipv4(ip_config.ipv4.gw);
                board_uart_write("\r\n[http] URL: http://");
                log_ipv4(ip_config.ipv4.addr);
                board_uart_write("/\r\n");
                return 0;
            }

            log_result("[wifi] wifi_get_vif_ip", result);
        } else {
            log_result("[wifi] station connect", result);
        }

        board_uart_write("[wifi] reconnect in ms=");
        board_uart_write_u32(EDGE_WIFI_STA_RECONNECT_PERIOD_MS);
        board_uart_write("\r\n");
        vTaskDelay(pdMS_TO_TICKS(EDGE_WIFI_STA_RECONNECT_PERIOD_MS));
    }
}

static void wifi_http_task(void *argument)
{
    int result;

    (void)argument;

    board_uart_write("[wifi] waiting for core tasks\r\n");

    result = wifi_wait_ready();
    if (result != 0) {
        log_result("[wifi] wifi_wait_ready", result);
        vTaskDelete(NULL);
        return;
    }

    /* wifi_wait_ready() also exposes the 32 KiB shared SRAM heap region. */
    board_uart_write("[wifi] core ready, free_heap=");
    board_uart_write_u32((uint32_t)xPortGetFreeHeapSize());
    board_uart_write("\r\n");

    result = connect_station();
    if (result != 0) {
        log_result("[wifi] connect_station", result);
        vTaskDelete(NULL);
        return;
    }

    /* MQTT and HTTP start only after DHCP has supplied a usable LAN address. */
    result = mqtt_status_start();
    if (result != 0) {
        log_result("[mqtt] mqtt_status_start", result);
    }

    result = http_server_run();
    log_result("[http] server stopped", result);

    (void)wifi_management_disconnect();
    vTaskDelete(NULL);
}

int wifi_http_app_start(void)
{
    BaseType_t result;

    result = xTaskCreate(
        wifi_http_task,
        "wifi-http",
        EDGE_HTTP_STACK_WORDS,
        NULL,
        EDGE_HTTP_TASK_PRIO,
        NULL);

    if (result != pdPASS) {
        board_uart_write("[wifi] failed to create wifi-http task\r\n");
        return -1;
    }

    return 0;
}

3.2 HTTP 可视化交互

设备内部使用静态网页实现一个简单的http server

#include <errno.h>
#include <stddef.h>
#include <stdint.h>
#include <string.h>

#include "lwip/inet.h"
#include "lwip/sockets.h"

#include "board.h"
#include "cifar10_inference.h"
#include "http_server.h"
#include "mqtt_status.h"

extern const char g_index_html[];
extern const size_t g_index_html_size;

#define HTTP_HEADER_BUFFER_SIZE 1024U
#define HTTP_JSON_BUFFER_SIZE    768U

static uint8_t s_rgb_upload[CIFAR10_INPUT_BYTES];

static const char k_header_html[] =
    "HTTP/1.0 200 OK\r\n"
    "Content-Type: text/html; charset=utf-8\r\n"
    "Cache-Control: no-store\r\n"
    "Connection: close\r\n"
    "\r\n";

static const char k_header_json[] =
    "HTTP/1.0 200 OK\r\n"
    "Content-Type: application/json; charset=utf-8\r\n"
    "Cache-Control: no-store\r\n"
    "Connection: close\r\n"
    "\r\n";

static const char k_response_not_found[] =
    "HTTP/1.0 404 Not Found\r\n"
    "Content-Type: application/json; charset=utf-8\r\n"
    "Cache-Control: no-store\r\n"
    "Connection: close\r\n"
    "\r\n"
    "{\"error\":\"not_found\"}\r\n";

static const char k_response_bad_request[] =
    "HTTP/1.0 400 Bad Request\r\n"
    "Content-Type: application/json; charset=utf-8\r\n"
    "Cache-Control: no-store\r\n"
    "Connection: close\r\n"
    "\r\n"
    "{\"error\":\"expected_exactly_3072_bytes_rgb888\"}\r\n";

static const char k_response_server_error[] =
    "HTTP/1.0 500 Internal Server Error\r\n"
    "Content-Type: application/json; charset=utf-8\r\n"
    "Cache-Control: no-store\r\n"
    "Connection: close\r\n"
    "\r\n"
    "{\"error\":\"inference_failed\"}\r\n";

static const char k_model_json[] =
    "{"
    "\"model\":\"nmsis-cifar10-q7\","
    "\"input\":{\"width\":32,\"height\":32,\"channels\":3,"
    "\"format\":\"RGB888\",\"bytes\":3072},"
    "\"classes\":[\"Plane\",\"Car\",\"Bird\",\"Cat\",\"Deer\","
    "\"Dog\",\"Frog\",\"Horse\",\"Ship\",\"Truck\"]"
    "}\r\n";

static void log_socket_error(const char *stage)
{
    board_uart_write(stage);
    board_uart_write(" errno=");
    board_uart_write_i32((int32_t)errno);
    board_uart_write("\r\n");
}

static int send_all(int socket_fd, const void *data, size_t size)
{
    const uint8_t *cursor = (const uint8_t *)data;

    while (size > 0U) {
        int sent = send(socket_fd, cursor, size, 0);

        if (sent <= 0) {
            return -1;
        }

        cursor += (size_t)sent;
        size -= (size_t)sent;
    }

    return 0;
}

static int starts_with(const uint8_t *data,
                       size_t data_size,
                       const char *text)
{
    size_t text_size = strlen(text);

    return (data_size >= text_size) &&
           (memcmp(data, text, text_size) == 0);
}

static size_t find_header_end(const uint8_t *data, size_t size)
{
    size_t i;

    if (size < 4U) {
        return 0U;
    }

    for (i = 0U; i + 3U < size; ++i) {
        if ((data[i] == '\r') && (data[i + 1U] == '\n') &&
            (data[i + 2U] == '\r') && (data[i + 3U] == '\n')) {
            return i + 4U;
        }
    }

    return 0U;
}

static uint8_t ascii_lower(uint8_t value)
{
    if ((value >= (uint8_t)'A') && (value <= (uint8_t)'Z')) {
        return (uint8_t)(value + ((uint8_t)'a' - (uint8_t)'A'));
    }

    return value;
}

static int header_name_matches(const uint8_t *line,
                               size_t line_size,
                               const char *name)
{
    size_t i;
    size_t name_size = strlen(name);

    if (line_size < name_size) {
        return 0;
    }

    for (i = 0U; i < name_size; ++i) {
        if (ascii_lower(line[i]) != ascii_lower((uint8_t)name[i])) {
            return 0;
        }
    }

    return 1;
}

static int parse_content_length(const uint8_t *header,
                                size_t header_size,
                                size_t *content_length)
{
    static const char k_name[] = "content-length:";
    size_t line_start = 0U;

    while (line_start < header_size) {
        size_t line_end = line_start;
        size_t cursor;
        size_t value = 0U;
        int have_digit = 0;

        while ((line_end + 1U < header_size) &&
               !((header[line_end] == '\r') &&
                 (header[line_end + 1U] == '\n'))) {
            ++line_end;
        }

        if (header_name_matches(header + line_start,
                                line_end - line_start,
                                k_name)) {
            cursor = line_start + sizeof(k_name) - 1U;

            while ((cursor < line_end) &&
                   ((header[cursor] == ' ') || (header[cursor] == '\t'))) {
                ++cursor;
            }

            while ((cursor < line_end) &&
                   (header[cursor] >= '0') && (header[cursor] <= '9')) {
                have_digit = 1;
                value = (value * 10U) + (size_t)(header[cursor] - '0');
                if (value > CIFAR10_INPUT_BYTES) {
                    return -1;
                }
                ++cursor;
            }

            if (!have_digit) {
                return -1;
            }

            *content_length = value;
            return 0;
        }

        if (line_end + 2U > header_size) {
            break;
        }
        line_start = line_end + 2U;
    }

    return -1;
}

static int recv_http_header(int client_fd,
                            uint8_t *buffer,
                            size_t capacity,
                            size_t *received_size,
                            size_t *header_end)
{
    size_t total = 0U;

    while (total < capacity) {
        int received = recv(client_fd,
                            buffer + total,
                            capacity - total,
                            0);

        if (received <= 0) {
            return -1;
        }

        total += (size_t)received;
        *header_end = find_header_end(buffer, total);

        if (*header_end != 0U) {
            *received_size = total;
            return 0;
        }
    }

    return -1;
}

static int recv_exact_body(int client_fd,
                           const uint8_t *initial_body,
                           size_t initial_size,
                           uint8_t *destination,
                           size_t expected_size)
{
    size_t copied = initial_size;

    if (copied > expected_size) {
        copied = expected_size;
    }

    if (copied > 0U) {
        memcpy(destination, initial_body, copied);
    }

    while (copied < expected_size) {
        int received = recv(client_fd,
                            destination + copied,
                            expected_size - copied,
                            0);

        if (received <= 0) {
            return -1;
        }

        copied += (size_t)received;
    }

    return 0;
}

static int append_char(char *buffer,
                       size_t capacity,
                       size_t *length,
                       char value)
{
    if (*length + 1U >= capacity) {
        return -1;
    }

    buffer[*length] = value;
    ++(*length);
    buffer[*length] = '\0';
    return 0;
}

static int append_text(char *buffer,
                       size_t capacity,
                       size_t *length,
                       const char *text)
{
    while (*text != '\0') {
        if (append_char(buffer, capacity, length, *text) != 0) {
            return -1;
        }
        ++text;
    }

    return 0;
}

static int append_u32(char *buffer,
                      size_t capacity,
                      size_t *length,
                      uint32_t value)
{
    char digits[10];
    size_t count = 0U;

    do {
        digits[count++] = (char)('0' + (value % 10U));
        value /= 10U;
    } while ((value != 0U) && (count < sizeof(digits)));

    while (count > 0U) {
        if (append_char(buffer,
                        capacity,
                        length,
                        digits[--count]) != 0) {
            return -1;
        }
    }

    return 0;
}

static int append_i32(char *buffer,
                      size_t capacity,
                      size_t *length,
                      int32_t value)
{
    uint32_t magnitude;

    if (value < 0) {
        if (append_char(buffer, capacity, length, '-') != 0) {
            return -1;
        }
        magnitude = (uint32_t)(-(value + 1)) + 1U;
    } else {
        magnitude = (uint32_t)value;
    }

    return append_u32(buffer, capacity, length, magnitude);
}

static int build_result_json(char *buffer,
                             size_t capacity,
                             const cifar10_result_t *result)
{
    size_t length = 0U;
    size_t i;

    buffer[0] = '\0';

    if ((append_text(buffer, capacity, &length,
                     "{\"model\":\"nmsis-cifar10-q7\",\"top1\":{") != 0) ||
        (append_text(buffer, capacity, &length, "\"index\":") != 0) ||
        (append_u32(buffer, capacity, &length, result->top1_index) != 0) ||
        (append_text(buffer, capacity, &length, ",\"label\":\"") != 0) ||
        (append_text(buffer, capacity, &length,
                     cifar10_label(result->top1_index)) != 0) ||
        (append_text(buffer, capacity, &length, "\",\"score_q7\":") != 0) ||
        (append_i32(buffer, capacity, &length, result->top1_score_q7) != 0) ||
        (append_text(buffer, capacity, &length,
                     ",\"probability_1e4\":") != 0) ||
        (append_u32(buffer, capacity, &length,
                    result->top1_probability_1e4) != 0) ||
        (append_text(buffer, capacity, &length,
                     "},\"latency_ms\":") != 0) ||
        (append_u32(buffer, capacity, &length, result->latency_ms) != 0) ||
        (append_text(buffer, capacity, &length, ",\"scores_q7\":[") != 0)) {
        return -1;
    }

    for (i = 0U; i < CIFAR10_CLASS_COUNT; ++i) {
        if ((i != 0U) &&
            (append_char(buffer, capacity, &length, ',') != 0)) {
            return -1;
        }

        if (append_i32(buffer,
                       capacity,
                       &length,
                       result->scores_q7[i]) != 0) {
            return -1;
        }
    }

    if (append_text(buffer, capacity, &length, "]}\r\n") != 0) {
        return -1;
    }

    return (int)length;
}

static void serve_inference(int client_fd,
                            const uint8_t *header_buffer,
                            size_t received_size,
                            size_t header_end)
{
    cifar10_result_t result;
    char json[HTTP_JSON_BUFFER_SIZE];
    size_t content_length = 0U;
    size_t initial_body_size = received_size - header_end;
    int json_size;
    int infer_result;

    if ((parse_content_length(header_buffer,
                              header_end,
                              &content_length) != 0) ||
        (content_length != CIFAR10_INPUT_BYTES)) {
        (void)send_all(client_fd,
                       k_response_bad_request,
                       sizeof(k_response_bad_request) - 1U);
        return;
    }

    if (recv_exact_body(client_fd,
                        header_buffer + header_end,
                        initial_body_size,
                        s_rgb_upload,
                        CIFAR10_INPUT_BYTES) != 0) {
        (void)send_all(client_fd,
                       k_response_bad_request,
                       sizeof(k_response_bad_request) - 1U);
        return;
    }

    board_uart_write("[ai] CIFAR-10 inference start\r\n");
    infer_result = cifar10_infer_rgb888(s_rgb_upload,
                                        CIFAR10_INPUT_BYTES,
                                        &result);

    if (infer_result != 0) {
        board_uart_write("[ai] inference failed code=");
        board_uart_write_i32(infer_result);
        board_uart_write("\r\n");
        (void)send_all(client_fd,
                       k_response_server_error,
                       sizeof(k_response_server_error) - 1U);
        return;
    }

    board_uart_write("[ai] top1=");
    board_uart_write(cifar10_label(result.top1_index));
    board_uart_write(" score_q7=");
    board_uart_write_i32(result.top1_score_q7);
    board_uart_write(" latency_ms=");
    board_uart_write_u32(result.latency_ms);
    board_uart_write("\r\n");

    mqtt_status_record_inference(&result);

    json_size = build_result_json(json, sizeof(json), &result);
    if (json_size < 0) {
        (void)send_all(client_fd,
                       k_response_server_error,
                       sizeof(k_response_server_error) - 1U);
        return;
    }

    if (send_all(client_fd,
                 k_header_json,
                 sizeof(k_header_json) - 1U) == 0) {
        (void)send_all(client_fd, json, (size_t)json_size);
    }
}

static void serve_client(int client_fd)
{
    uint8_t request[HTTP_HEADER_BUFFER_SIZE];
    size_t received_size = 0U;
    size_t header_end = 0U;

    if (recv_http_header(client_fd,
                         request,
                         sizeof(request),
                         &received_size,
                         &header_end) != 0) {
        return;
    }

    if (starts_with(request, header_end, "GET / ") ||
        starts_with(request, header_end, "GET /index.html ")) {
        if (send_all(client_fd,
                     k_header_html,
                     sizeof(k_header_html) - 1U) == 0) {
            (void)send_all(client_fd, g_index_html, g_index_html_size);
        }
        return;
    }

    if (starts_with(request, header_end, "GET /api/model ")) {
        if (send_all(client_fd,
                     k_header_json,
                     sizeof(k_header_json) - 1U) == 0) {
            (void)send_all(client_fd,
                           k_model_json,
                           sizeof(k_model_json) - 1U);
        }
        return;
    }

    if (starts_with(request, header_end, "POST /api/infer ")) {
        serve_inference(client_fd,
                        request,
                        received_size,
                        header_end);
        return;
    }

    (void)send_all(client_fd,
                   k_response_not_found,
                   sizeof(k_response_not_found) - 1U);
}

int http_server_run(void)
{
    int server_fd;
    int reuse = 1;
    struct sockaddr_in address;

    server_fd = socket(AF_INET, SOCK_STREAM, 0);
    if (server_fd < 0) {
        log_socket_error("[http] socket failed");
        return -1;
    }

    if (setsockopt(server_fd,
                   SOL_SOCKET,
                   SO_REUSEADDR,
                   &reuse,
                   sizeof(reuse)) != 0) {
        log_socket_error("[http] SO_REUSEADDR failed");
        close(server_fd);
        return -2;
    }

    memset(&address, 0, sizeof(address));
    address.sin_family = AF_INET;
    address.sin_port = htons(80U);
    address.sin_addr.s_addr = htonl(INADDR_ANY);

    if (bind(server_fd,
             (struct sockaddr *)&address,
             sizeof(address)) != 0) {
        log_socket_error("[http] bind failed");
        close(server_fd);
        return -3;
    }

    if (listen(server_fd, 2) != 0) {
        log_socket_error("[http] listen failed");
        close(server_fd);
        return -4;
    }

    board_uart_write("[http] listening on TCP/80\r\n");
    board_uart_write("[ai] model_bytes=");
    board_uart_write_u32((uint32_t)cifar10_model_bytes());
    board_uart_write(" workspace_bytes=");
    board_uart_write_u32((uint32_t)cifar10_workspace_bytes());
    board_uart_write("\r\n");
    board_uart_write("[ai] POST /api/infer: 3072-byte RGB888\r\n");

    for (;;) {
        int client_fd = accept(server_fd, NULL, NULL);

        if (client_fd < 0) {
            log_socket_error("[http] accept failed");
            continue;
        }

        serve_client(client_fd);
        (void)shutdown(client_fd, SHUT_RDWR);
        close(client_fd);
    }
}

3.3 MQTT 状态上报

MQTT根据sdk参考示例改造，实现：内部温度采集；周期上传；远程状态监控。

#include <stddef.h>
#include <stdint.h>
#include <string.h>

#include "FreeRTOS.h"
#include "task.h"

#include "lwip/apps/mqtt.h"
#include "lwip/ip_addr.h"
#include "lwip/tcpip.h"

#include "board.h"
#include "cifar10_inference.h"
#include "mqtt_status.h"
#include "mqtt_status_config.h"
#include "wrapper_os_config.h"

#include "device_temperature.h"

/*
 * GigaDevice's lwIP MQTT fork declares this symbol in mqtt.h and expects
 * exactly one application-layer definition.
 */
int16_t connect_fail_reason = -1;

#define MQTT_JSON_BUFFER_SIZE  640U
#define MQTT_TOPIC_BUFFER_SIZE 96U

#define MQTT_QOS_TELEMETRY     0U
#define MQTT_RETAIN_EVENT      0U
#define MQTT_RETAIN_STATE      1U

#define MQTT_NOTIFY_INFERENCE  (1UL << 0)
#define MQTT_NOTIFY_CONNECTED  (1UL << 1)

static mqtt_client_t *s_client;
static TaskHandle_t s_task_handle;
static volatile uint8_t s_connected;
static volatile uint8_t s_connecting;
static volatile uint8_t s_started;

static cifar10_result_t s_latest_inference;
static uint32_t s_inference_sequence;
static uint8_t s_inference_valid;

static char s_client_id[] = EDGE_MQTT_CLIENT_ID;
static char s_username[] = EDGE_MQTT_USERNAME;
static char s_password[] = EDGE_MQTT_PASSWORD;
static char s_will_topic[] = EDGE_MQTT_TOPIC_ROOT "/availability";
static char s_will_message[] = "offline";

static struct mqtt_connect_client_info_t s_client_info;

static void append_char(char *buffer, size_t capacity, size_t *length, char value)
{
    if ((*length + 1U) < capacity) {
        buffer[*length] = value;
        ++(*length);
        buffer[*length] = '\0';
    }
}

static void append_text(char *buffer,
                        size_t capacity,
                        size_t *length,
                        const char *text)
{
    if (text == NULL) {
        return;
    }

    while (*text != '\0') {
        append_char(buffer, capacity, length, *text);
        ++text;
    }
}

static void append_u32(char *buffer,
                       size_t capacity,
                       size_t *length,
                       uint32_t value)
{
    char digits[10];
    size_t count = 0U;

    do {
        digits[count++] = (char)('0' + (value % 10U));
        value /= 10U;
    } while ((value != 0U) && (count < sizeof(digits)));

    while (count > 0U) {
        append_char(buffer, capacity, length, digits[--count]);
    }
}

static void append_i32(char *buffer,
                       size_t capacity,
                       size_t *length,
                       int32_t value)
{
    uint32_t magnitude;

    if (value < 0) {
        append_char(buffer, capacity, length, '-');
        magnitude = (uint32_t)(-(int64_t)value);
    } else {
        magnitude = (uint32_t)value;
    }

    append_u32(buffer, capacity, length, magnitude);
}

static int make_topic(char *buffer,
                      size_t capacity,
                      const char *suffix)
{
    size_t root_length = strlen(EDGE_MQTT_TOPIC_ROOT);
    size_t suffix_length = strlen(suffix);

    if ((root_length + 1U + suffix_length + 1U) > capacity) {
        return -1;
    }

    memcpy(buffer, EDGE_MQTT_TOPIC_ROOT, root_length);
    buffer[root_length] = '/';
    memcpy(buffer + root_length + 1U, suffix, suffix_length);
    buffer[root_length + 1U + suffix_length] = '\0';
    return 0;
}

static err_t publish_payload(const char *topic,
                             const char *payload,
                             uint8_t retain)
{
    err_t result;

    if ((s_client == NULL) || (s_connected == 0U)) {
        return ERR_CONN;
    }

    LOCK_TCPIP_CORE();
    result = mqtt_msg_publish(s_client,
                              topic,
                              payload,
                              (u16_t)strlen(payload),
                              MQTT_QOS_TELEMETRY,
                              retain,
                              NULL,
                              NULL);
    UNLOCK_TCPIP_CORE();

    return result;
}

static void log_publish_error(const char *name, err_t result)
{
    if (result != ERR_OK) {
        board_uart_write("[mqtt] publish ");
        board_uart_write(name);
        board_uart_write(" failed=");
        board_uart_write_i32((int32_t)result);
        board_uart_write("\r\n");
    }
}

static void append_scores(char *buffer,
                          size_t capacity,
                          size_t *length,
                          const int8_t *scores)
{
    uint32_t index;

    append_char(buffer, capacity, length, '[');
    for (index = 0U; index < CIFAR10_CLASS_COUNT; ++index) {
        if (index != 0U) {
            append_char(buffer, capacity, length, ',');
        }
        append_i32(buffer, capacity, length, scores[index]);
    }
    append_char(buffer, capacity, length, ']');
}

static size_t build_inference_json(char *buffer,
                                   size_t capacity,
                                   const cifar10_result_t *result,
                                   uint32_t sequence)
{
    size_t length = 0U;

    buffer[0] = '\0';
    append_text(buffer, capacity, &length, "{\"sequence\":");
    append_u32(buffer, capacity, &length, sequence);
    append_text(buffer, capacity, &length, ",\"latency_ms\":");
    append_u32(buffer, capacity, &length, result->latency_ms);
    append_text(buffer, capacity, &length, ",\"index\":");
    append_u32(buffer, capacity, &length, result->top1_index);
    append_text(buffer, capacity, &length, ",\"label\":\"");
    append_text(buffer, capacity, &length, cifar10_label(result->top1_index));
    append_text(buffer, capacity, &length, "\",\"score_q7\":");
    append_i32(buffer, capacity, &length, result->top1_score_q7);
    append_text(buffer, capacity, &length, ",\"probability_1e4\":");
    append_u32(buffer, capacity, &length, result->top1_probability_1e4);
    append_text(buffer, capacity, &length, ",\"scores_q7\":");
    append_scores(buffer, capacity, &length, result->scores_q7);
    append_char(buffer, capacity, &length, '}');

    return length;
}

static size_t build_temperature_json(char *buffer,
                                     size_t capacity,
                                     const device_temperature_sample_t *sample)
{
    size_t length = 0U;

    buffer[0] = '\0';
    append_text(buffer, capacity, &length, "{\"adc_channel\":9,\"adc_raw\":");
    append_u32(buffer, capacity, &length, sample->adc_raw);
    append_text(buffer, capacity, &length, ",\"milli_celsius\":");
    append_i32(buffer, capacity, &length, sample->milli_celsius);
    append_text(buffer, capacity, &length, ",\"vref_channel\":10,\"vref_raw\":");
    append_u32(buffer, capacity, &length, sample->vref_raw);
    append_text(buffer, capacity, &length, ",\"vref_mv\":");
    append_u32(buffer, capacity, &length, sample->vref_mv);
    append_text(buffer, capacity, &length, ",\"vdda_mv\":");
    append_u32(buffer, capacity, &length, EDGE_TEMPERATURE_VDDA_MV);
    append_char(buffer, capacity, &length, '}');

    return length;
}

static size_t build_status_json(char *buffer,
                                size_t capacity,
                                const device_temperature_sample_t *temperature,
                                int temperature_valid,
                                const cifar10_result_t *inference,
                                uint8_t inference_valid,
                                uint32_t sequence)
{
    size_t length = 0U;

    buffer[0] = '\0';
    append_text(buffer, capacity, &length, "{\"uptime_ms\":");
    append_u32(buffer,
               capacity,
               &length,
               (uint32_t)(xTaskGetTickCount() * portTICK_PERIOD_MS));

    append_text(buffer, capacity, &length, ",\"temperature\":");
    if (temperature_valid != 0) {
        append_text(buffer, capacity, &length, "{\"adc_channel\":9,\"adc_raw\":");
        append_u32(buffer, capacity, &length, temperature->adc_raw);
        append_text(buffer, capacity, &length, ",\"milli_celsius\":");
        append_i32(buffer, capacity, &length, temperature->milli_celsius);
        append_text(buffer, capacity, &length, ",\"vref_channel\":10,\"vref_raw\":");
        append_u32(buffer, capacity, &length, temperature->vref_raw);
        append_text(buffer, capacity, &length, ",\"vref_mv\":");
        append_u32(buffer, capacity, &length, temperature->vref_mv);
        append_text(buffer, capacity, &length, ",\"vdda_mv\":");
        append_u32(buffer, capacity, &length, EDGE_TEMPERATURE_VDDA_MV);
        append_char(buffer, capacity, &length, '}');
    } else {
        append_text(buffer, capacity, &length, "null");
    }

    append_text(buffer, capacity, &length, ",\"inference\":");
    if (inference_valid != 0U) {
        append_text(buffer, capacity, &length, "{\"sequence\":");
        append_u32(buffer, capacity, &length, sequence);
        append_text(buffer, capacity, &length, ",\"latency_ms\":");
        append_u32(buffer, capacity, &length, inference->latency_ms);
        append_text(buffer, capacity, &length, ",\"index\":");
        append_u32(buffer, capacity, &length, inference->top1_index);
        append_text(buffer, capacity, &length, ",\"label\":\"");
        append_text(buffer, capacity, &length, cifar10_label(inference->top1_index));
        append_text(buffer, capacity, &length, "\",\"score_q7\":");
        append_i32(buffer, capacity, &length, inference->top1_score_q7);
        append_text(buffer, capacity, &length, ",\"probability_1e4\":");
        append_u32(buffer, capacity, &length, inference->top1_probability_1e4);
        append_text(buffer, capacity, &length, ",\"scores_q7\":");
        append_scores(buffer, capacity, &length, inference->scores_q7);
        append_char(buffer, capacity, &length, '}');
    } else {
        append_text(buffer, capacity, &length, "null");
    }

    append_text(buffer, capacity, &length, ",\"heap_free\":");
    append_u32(buffer, capacity, &length, (uint32_t)xPortGetFreeHeapSize());
    append_text(buffer, capacity, &length, ",\"heap_min\":");
    append_u32(buffer,
               capacity,
               &length,
               (uint32_t)xPortGetMinimumEverFreeHeapSize());
    append_char(buffer, capacity, &length, '}');

    return length;
}

static void copy_latest_inference(cifar10_result_t *result,
                                  uint8_t *valid,
                                  uint32_t *sequence)
{
    taskENTER_CRITICAL();
    *result = s_latest_inference;
    *valid = s_inference_valid;
    *sequence = s_inference_sequence;
    taskEXIT_CRITICAL();
}

static void mqtt_connection_callback(mqtt_client_t *client,
                                     void *argument,
                                     mqtt_connection_status_t status)
{
    (void)client;
    (void)argument;

    s_connecting = 0U;

    if (status == MQTT_CONNECT_ACCEPTED) {
        s_connected = 1U;
    } else {
        s_connected = 0U;
    }

    if (s_task_handle != NULL) {
        (void)xTaskNotify(s_task_handle,
                          MQTT_NOTIFY_CONNECTED,
                          eSetBits);
    }
}

static err_t start_connection(void)
{
    ip_addr_t broker_address;
    err_t result;

    if (ipaddr_aton(EDGE_MQTT_BROKER_IPV4, &broker_address) == 0) {
        return ERR_ARG;
    }

    if (s_client == NULL) {
        LOCK_TCPIP_CORE();
        s_client = mqtt_client_new();
        UNLOCK_TCPIP_CORE();

        if (s_client == NULL) {
            return ERR_MEM;
        }
    }

    memset(&s_client_info, 0, sizeof(s_client_info));
    s_client_info.client_id = s_client_id;
    s_client_info.client_user =
        (s_username[0] != '\0') ? s_username : NULL;
    s_client_info.client_pass =
        (s_password[0] != '\0') ? s_password : NULL;
    s_client_info.keep_alive = EDGE_MQTT_KEEP_ALIVE_SECONDS;
    s_client_info.will_topic = s_will_topic;
    s_client_info.will_msg = s_will_message;
    s_client_info.will_qos = MQTT_QOS_TELEMETRY;
    s_client_info.will_retain = 1U;
    s_client_info.clean_session_disabled = 0U;

    s_connecting = 1U;

    LOCK_TCPIP_CORE();
    result = mqtt_client_connect(s_client,
                                 &broker_address,
                                 EDGE_MQTT_BROKER_PORT,
                                 NULL,
                                 mqtt_connection_callback,
                                 NULL,
                                 &s_client_info);
    UNLOCK_TCPIP_CORE();

    if (result != ERR_OK) {
        s_connecting = 0U;
    }

    return result;
}

static void publish_availability(void)
{
    char topic[MQTT_TOPIC_BUFFER_SIZE];
    err_t result;

    if (make_topic(topic, sizeof(topic), "availability") != 0) {
        return;
    }

    result = publish_payload(topic, "online", MQTT_RETAIN_STATE);
    log_publish_error("availability", result);
}

static void publish_inference(const cifar10_result_t *inference,
                              uint32_t sequence)
{
    char topic[MQTT_TOPIC_BUFFER_SIZE];
    char payload[MQTT_JSON_BUFFER_SIZE];
    err_t result;

    if (make_topic(topic, sizeof(topic), "inference") != 0) {
        return;
    }

    (void)build_inference_json(payload,
                               sizeof(payload),
                               inference,
                               sequence);
    result = publish_payload(topic, payload, MQTT_RETAIN_EVENT);
    log_publish_error("inference", result);
}

static void publish_periodic_status(void)
{
    char topic[MQTT_TOPIC_BUFFER_SIZE];
    char payload[MQTT_JSON_BUFFER_SIZE];
    device_temperature_sample_t temperature = {0};
    cifar10_result_t inference;
    uint32_t sequence;
    uint8_t inference_valid;
    int temperature_result;
    err_t publish_result;

    temperature_result = device_temperature_read(&temperature);
    if (temperature_result != 0) {
        board_uart_write("[temp] ADC9 read failed=");
        board_uart_write_i32(temperature_result);
        board_uart_write("\r\n");
    }

    copy_latest_inference(&inference, &inference_valid, &sequence);

    if (make_topic(topic, sizeof(topic), "temperature") == 0) {
        if (temperature_result == 0) {
            (void)build_temperature_json(payload,
                                         sizeof(payload),
                                         &temperature);
            publish_result = publish_payload(topic,
                                             payload,
                                             MQTT_RETAIN_STATE);
            log_publish_error("temperature", publish_result);
        }
    }

    if (make_topic(topic, sizeof(topic), "status") == 0) {
        (void)build_status_json(payload,
                                sizeof(payload),
                                &temperature,
                                temperature_result == 0,
                                &inference,
                                inference_valid,
                                sequence);
        publish_result = publish_payload(topic,
                                         payload,
                                         MQTT_RETAIN_STATE);
        log_publish_error("status", publish_result);
    }
}

static void mqtt_status_task(void *argument)
{
    TickType_t next_status_tick;
    TickType_t next_connect_tick = 0U;
    uint32_t last_published_sequence = 0U;
    uint32_t notification_value;

    (void)argument;

    s_task_handle = xTaskGetCurrentTaskHandle();
    next_status_tick = xTaskGetTickCount();

    board_uart_write("[mqtt] broker=");
    board_uart_write(EDGE_MQTT_BROKER_IPV4);
    board_uart_write(":");
    board_uart_write_u32(EDGE_MQTT_BROKER_PORT);
    board_uart_write("\r\n");

    for (;;) {
        TickType_t now = xTaskGetTickCount();

        if ((s_connected == 0U) &&
            (s_connecting == 0U) &&
            ((int32_t)(now - next_connect_tick) >= 0)) {
            err_t result = start_connection();

            if (result == ERR_OK) {
                board_uart_write("[mqtt] connecting\r\n");
            } else {
                board_uart_write("[mqtt] connect start failed=");
                board_uart_write_i32((int32_t)result);
                board_uart_write("\r\n");
            }

            next_connect_tick =
                now + pdMS_TO_TICKS(EDGE_MQTT_RECONNECT_PERIOD_MS);
        }

        notification_value = 0U;
        (void)xTaskNotifyWait(0U,
                              UINT32_MAX,
                              ¬ification_value,
                              pdMS_TO_TICKS(250U));

        if ((notification_value & MQTT_NOTIFY_CONNECTED) != 0U) {
            if (s_connected != 0U) {
                board_uart_write("[mqtt] connected\r\n");
                publish_availability();
                next_status_tick = xTaskGetTickCount();
            } else {
                board_uart_write("[mqtt] disconnected\r\n");
                next_connect_tick =
                    xTaskGetTickCount() +
                    pdMS_TO_TICKS(EDGE_MQTT_RECONNECT_PERIOD_MS);
            }
        }

        if (s_connected != 0U) {
            cifar10_result_t inference;
            uint32_t sequence;
            uint8_t valid;

            /* The notification only shortens latency. Sequence polling also
             * covers an inference recorded before the MQTT task was scheduled
             * or while the broker was disconnected. */
            copy_latest_inference(&inference, &valid, &sequence);
            if ((valid != 0U) && (sequence != last_published_sequence)) {
                publish_inference(&inference, sequence);
                last_published_sequence = sequence;
            }
        }

        now = xTaskGetTickCount();
        if ((s_connected != 0U) &&
            ((int32_t)(now - next_status_tick) >= 0)) {
            publish_periodic_status();
            next_status_tick =
                now + pdMS_TO_TICKS(EDGE_MQTT_STATUS_PERIOD_MS);
        }
    }
}

int mqtt_status_start(void)
{
    BaseType_t result;
    int temperature_result;

    taskENTER_CRITICAL();
    if (s_started != 0U) {
        taskEXIT_CRITICAL();
        return 0;
    }
    s_started = 1U;
    taskEXIT_CRITICAL();

    temperature_result = device_temperature_init();
    if (temperature_result != 0) {
        board_uart_write("[temp] ADC9 init failed=");
        board_uart_write_i32(temperature_result);
        board_uart_write("\r\n");
    } else {
        board_uart_write("[temp] ADC9 temperature + ADC10 VREFINT ready\r\n");
    }

    result = xTaskCreate(mqtt_status_task,
                         "mqtt-status",
                         EDGE_MQTT_TASK_STACK_WORDS,
                         NULL,
                         OS_TASK_PRIORITY(EDGE_MQTT_TASK_PRIORITY_OFFSET),
                         NULL);

    if (result != pdPASS) {
        taskENTER_CRITICAL();
        s_started = 0U;
        taskEXIT_CRITICAL();
        board_uart_write("[mqtt] task create failed\r\n");
        return -1;
    }

    return 0;
}

void mqtt_status_record_inference(const cifar10_result_t *result)
{
    TaskHandle_t task_handle;

    if (result == NULL) {
        return;
    }

    taskENTER_CRITICAL();
    s_latest_inference = *result;
    ++s_inference_sequence;
    s_inference_valid = 1U;
    task_handle = s_task_handle;
    taskEXIT_CRITICAL();

    if (task_handle != NULL) {
        (void)xTaskNotify(task_handle,
                          MQTT_NOTIFY_INFERENCE,
                          eSetBits);
    }
}

3.4 NMSIS-NN 神经网络推理

AI 部署采用官方 NMSIS-NN CIFAR10 示例。

#include "cifar10_inference.h"

#include <stddef.h>
#include <stdint.h>

#include "FreeRTOS.h"
#include "task.h"

#include "riscv_math.h"
#include "riscv_nnfunctions.h"

#include "cifar10_parameter.h"
#include "cifar10_weights.h"

/* Keep weights in Flash/rodata.  The original standalone example omitted
 * const, which would copy roughly 32 KiB of weights into RAM at startup. */
static const q7_t s_conv1_wt[
    CONV1_IM_CH * CONV1_KER_DIM * CONV1_KER_DIM * CONV1_OUT_CH] = CONV1_WT;
static const q7_t s_conv1_bias[CONV1_OUT_CH] = CONV1_BIAS;

static const q7_t s_conv2_wt[
    CONV2_IM_CH * CONV2_KER_DIM * CONV2_KER_DIM * CONV2_OUT_CH] = CONV2_WT;
static const q7_t s_conv2_bias[CONV2_OUT_CH] = CONV2_BIAS;

static const q7_t s_conv3_wt[
    CONV3_IM_CH * CONV3_KER_DIM * CONV3_KER_DIM * CONV3_OUT_CH] = CONV3_WT;
static const q7_t s_conv3_bias[CONV3_OUT_CH] = CONV3_BIAS;

static const q7_t s_ip1_wt[IP1_DIM * IP1_OUT] = IP1_WT;
static const q7_t s_ip1_bias[IP1_OUT] = IP1_BIAS;

/* Exact workspaces used by the upstream example:
 *   activation scratch: 40 KiB
 *   im2col/FC scratch:    3.125 KiB
 * Total:                 43.125 KiB
 *
 * They are static so inference does not fragment or consume the Wi-Fi heap. */
static q7_t s_col_buffer[2U * 5U * 5U * 32U * 2U]
    __attribute__((aligned(8)));
static q7_t s_scratch_buffer[32U * 32U * 10U * 4U]
    __attribute__((aligned(8)));
static q7_t s_output_data[IP1_OUT];

static const char *const s_labels[CIFAR10_CLASS_COUNT] = {
    "Plane", "Car", "Bird", "Cat", "Deer",
    "Dog", "Frog", "Horse", "Ship", "Truck"
};

static int check_status(riscv_status status)
{
    return (status == RISCV_MATH_SUCCESS) ? 0 : -1;
}

int cifar10_infer_rgb888(const uint8_t *rgb,
                         size_t rgb_size,
                         cifar10_result_t *result)
{
    static const int32_t mean_data[3] = INPUT_MEAN_SHIFT;
    static const uint32_t scale_data[3] = INPUT_RIGHT_SHIFT;
    q7_t *img_buffer1;
    q7_t *img_buffer2;
    TickType_t tick_start;
    TickType_t tick_end;
    uint8_t top1_index;
    int8_t top1_score;
    size_t i;

    if ((rgb == NULL) || (result == NULL) ||
        (rgb_size != (size_t)CIFAR10_INPUT_BYTES)) {
        return -1;
    }

    img_buffer1 = s_scratch_buffer;
    img_buffer2 = img_buffer1 + (32U * 32U * 32U);

    tick_start = xTaskGetTickCount();

    /* RGB888 -> signed q7 input using the example model's mean/scale. */
    for (i = 0U; i < (size_t)CIFAR10_INPUT_BYTES; i += 3U) {
        uint32_t channel;

        for (channel = 0U; channel < 3U; ++channel) {
            int32_t value;
            uint32_t shift;

            shift = scale_data[channel];
            value = ((int32_t)rgb[i + channel] - mean_data[channel]) << 7;
            value += (int32_t)(1UL << (shift - 1U));
            value >>= shift;
            img_buffer2[i + channel] = (q7_t)__SSAT(value, 8U);
        }
    }

    if (check_status(riscv_convolve_HWC_q7_RGB(
            img_buffer2,
            CONV1_IM_DIM,
            CONV1_IM_CH,
            s_conv1_wt,
            CONV1_OUT_CH,
            CONV1_KER_DIM,
            CONV1_PADDING,
            CONV1_STRIDE,
            s_conv1_bias,
            CONV1_BIAS_LSHIFT,
            CONV1_OUT_RSHIFT,
            img_buffer1,
            CONV1_OUT_DIM,
            (q15_t *)s_col_buffer,
            NULL)) != 0) {
        return -2;
    }

    riscv_relu_q7(img_buffer1,
                  CONV1_OUT_DIM * CONV1_OUT_DIM * CONV1_OUT_CH);

    riscv_maxpool_q7_HWC(img_buffer1,
                         CONV1_OUT_DIM,
                         CONV1_OUT_CH,
                         POOL1_KER_DIM,
                         POOL1_PADDING,
                         POOL1_STRIDE,
                         POOL1_OUT_DIM,
                         NULL,
                         img_buffer2);

    if (check_status(riscv_convolve_HWC_q7_fast(
            img_buffer2,
            CONV2_IM_DIM,
            CONV2_IM_CH,
            s_conv2_wt,
            CONV2_OUT_CH,
            CONV2_KER_DIM,
            CONV2_PADDING,
            CONV2_STRIDE,
            s_conv2_bias,
            CONV2_BIAS_LSHIFT,
            CONV2_OUT_RSHIFT,
            img_buffer1,
            CONV2_OUT_DIM,
            (q15_t *)s_col_buffer,
            NULL)) != 0) {
        return -3;
    }

    riscv_relu_q7(img_buffer1,
                  CONV2_OUT_DIM * CONV2_OUT_DIM * CONV2_OUT_CH);

    riscv_maxpool_q7_HWC(img_buffer1,
                         CONV2_OUT_DIM,
                         CONV2_OUT_CH,
                         POOL2_KER_DIM,
                         POOL2_PADDING,
                         POOL2_STRIDE,
                         POOL2_OUT_DIM,
                         s_col_buffer,
                         img_buffer2);

    if (check_status(riscv_convolve_HWC_q7_fast(
            img_buffer2,
            CONV3_IM_DIM,
            CONV3_IM_CH,
            s_conv3_wt,
            CONV3_OUT_CH,
            CONV3_KER_DIM,
            CONV3_PADDING,
            CONV3_STRIDE,
            s_conv3_bias,
            CONV3_BIAS_LSHIFT,
            CONV3_OUT_RSHIFT,
            img_buffer1,
            CONV3_OUT_DIM,
            (q15_t *)s_col_buffer,
            NULL)) != 0) {
        return -4;
    }

    riscv_relu_q7(img_buffer1,
                  CONV3_OUT_DIM * CONV3_OUT_DIM * CONV3_OUT_CH);

    riscv_maxpool_q7_HWC(img_buffer1,
                         CONV3_OUT_DIM,
                         CONV3_OUT_CH,
                         POOL3_KER_DIM,
                         POOL3_PADDING,
                         POOL3_STRIDE,
                         POOL3_OUT_DIM,
                         s_col_buffer,
                         img_buffer2);

    if (check_status(riscv_fully_connected_q7_opt(
            img_buffer2,
            s_ip1_wt,
            IP1_DIM,
            IP1_OUT,
            IP1_BIAS_LSHIFT,
            IP1_OUT_RSHIFT,
            s_ip1_bias,
            s_output_data,
            (q15_t *)img_buffer1)) != 0) {
        return -5;
    }

    riscv_softmax_q7(s_output_data, IP1_OUT, s_output_data);

    tick_end = xTaskGetTickCount();

    top1_index = 0U;
    top1_score = s_output_data[0];

    for (i = 0U; i < CIFAR10_CLASS_COUNT; ++i) {
        result->scores_q7[i] = s_output_data[i];

        if (s_output_data[i] > top1_score) {
            top1_score = s_output_data[i];
            top1_index = (uint8_t)i;
        }
    }

    result->top1_index = top1_index;
    result->top1_score_q7 = top1_score;
    result->top1_probability_1e4 =
        (uint16_t)(((uint32_t)(uint8_t)top1_score * 10000U + 63U) / 127U);
    result->latency_ms =
        (uint32_t)((tick_end - tick_start) * portTICK_PERIOD_MS);

    return 0;
}

const char *cifar10_label(uint8_t index)
{
    if (index >= CIFAR10_CLASS_COUNT) {
        return "Unknown";
    }

    return s_labels[index];
}

size_t cifar10_workspace_bytes(void)
{
    return sizeof(s_col_buffer) + sizeof(s_scratch_buffer) +
           sizeof(s_output_data);
}

size_t cifar10_model_bytes(void)
{
    return sizeof(s_conv1_wt) + sizeof(s_conv1_bias) +
           sizeof(s_conv2_wt) + sizeof(s_conv2_bias) +
           sizeof(s_conv3_wt) + sizeof(s_conv3_bias) +
           sizeof(s_ip1_wt) + sizeof(s_ip1_bias);
}

4. 效果

系统初始化

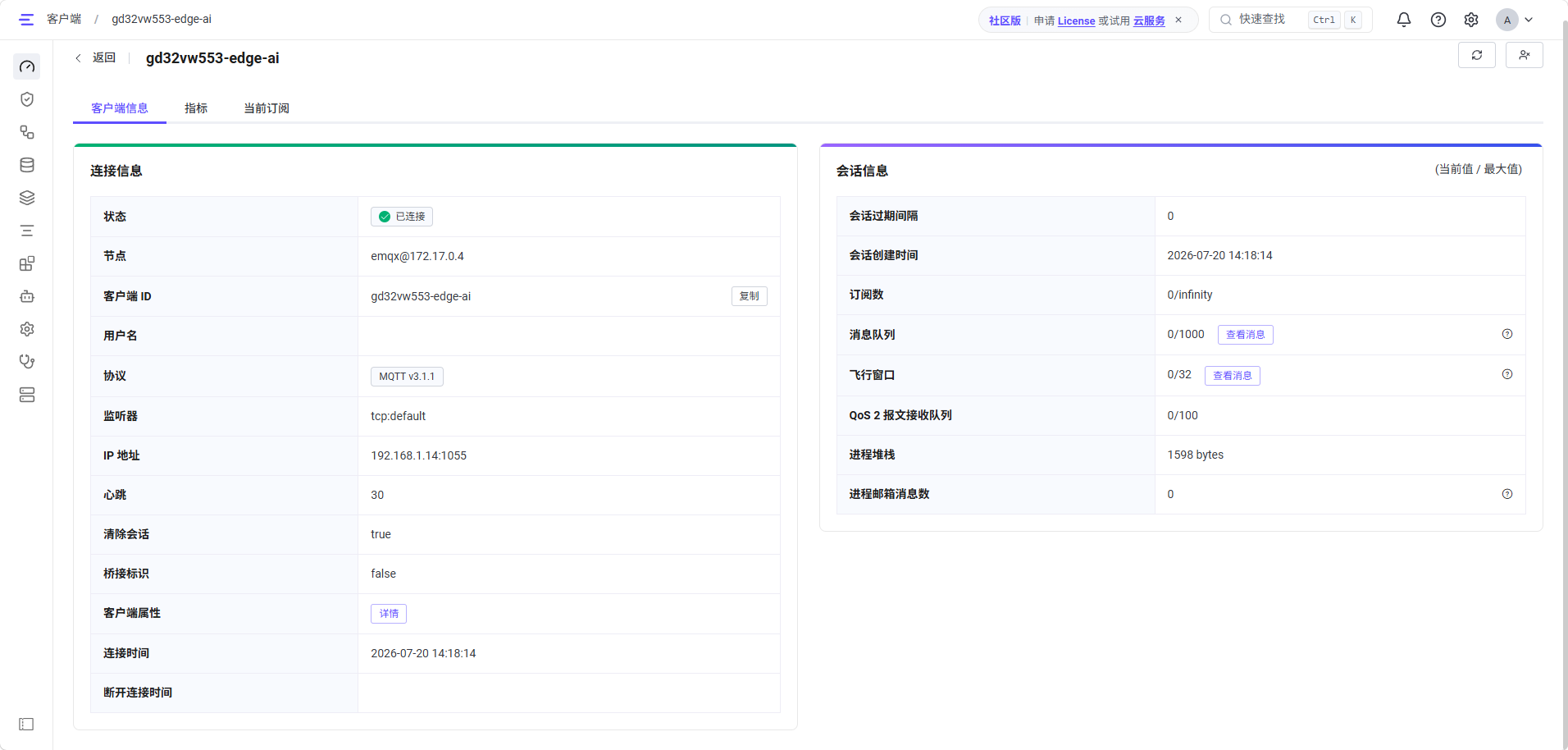

MQTT EMQX Broker

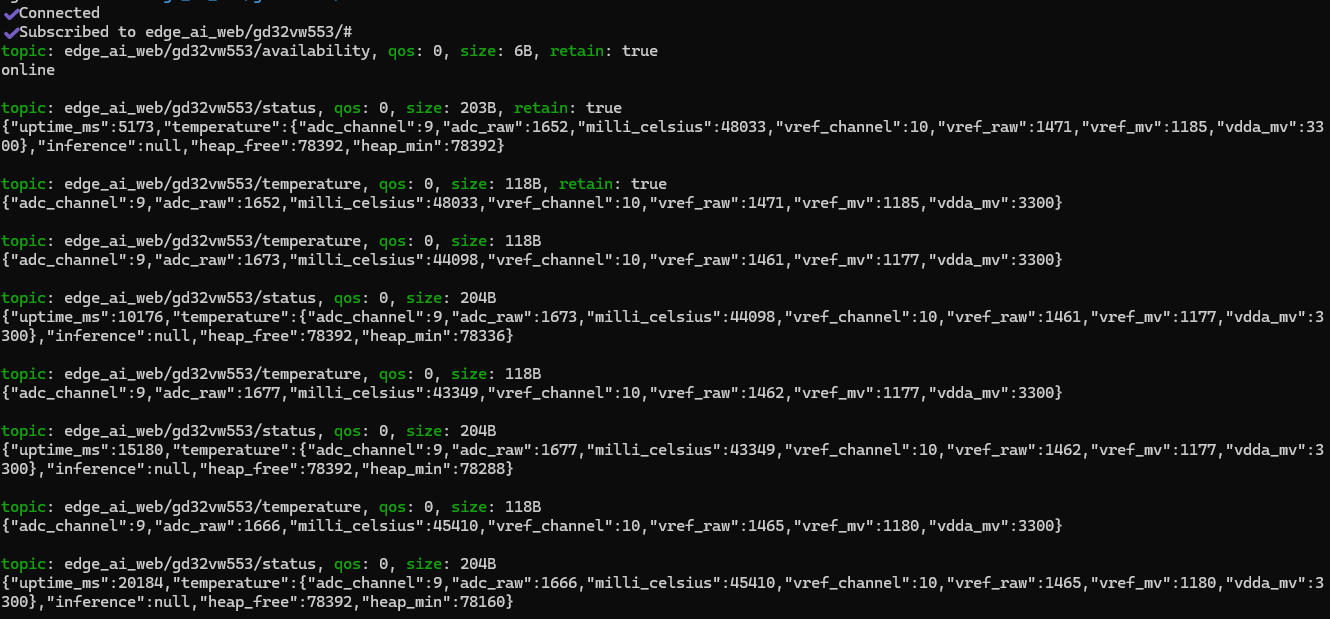

MQTT消息

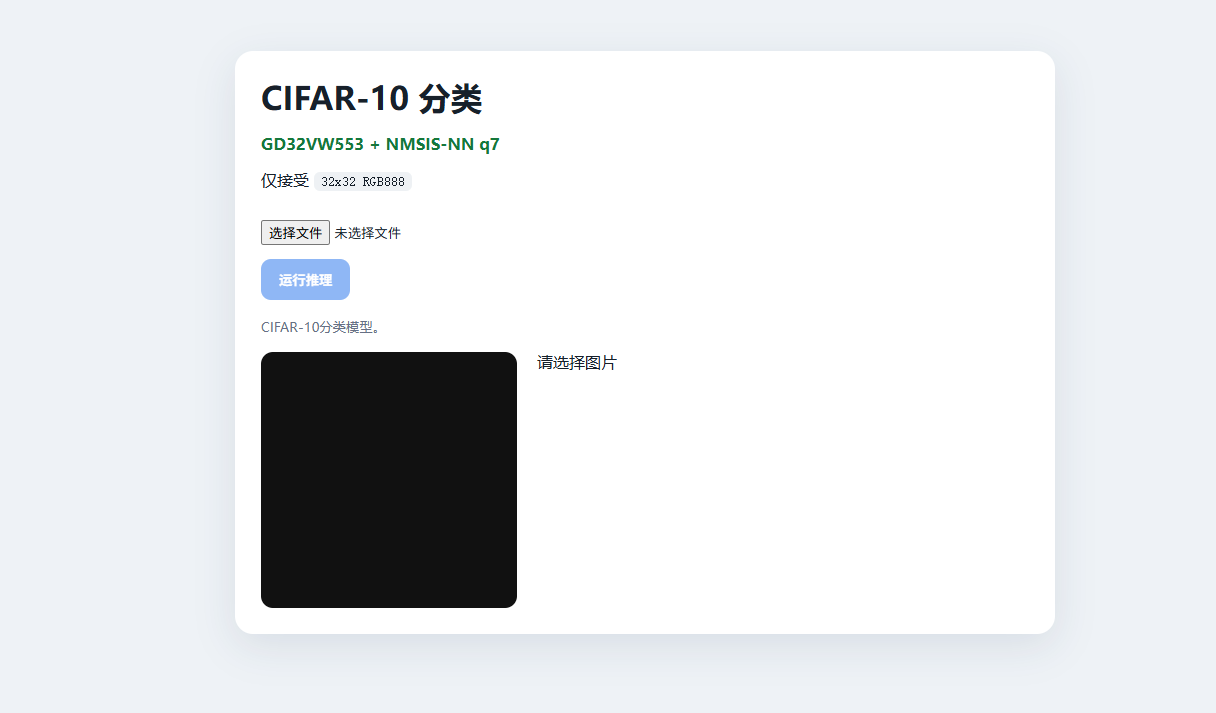

网页推理

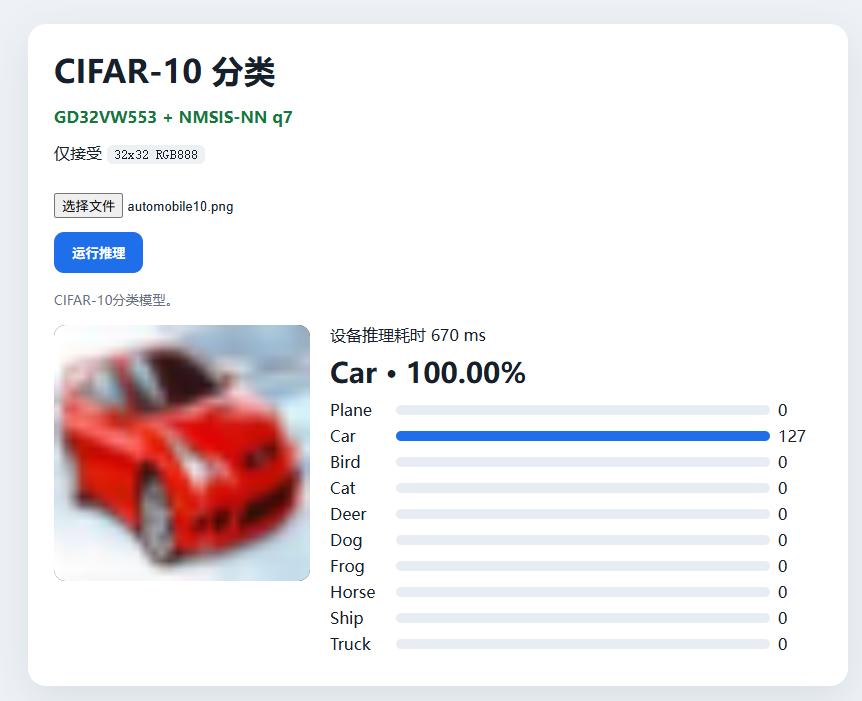

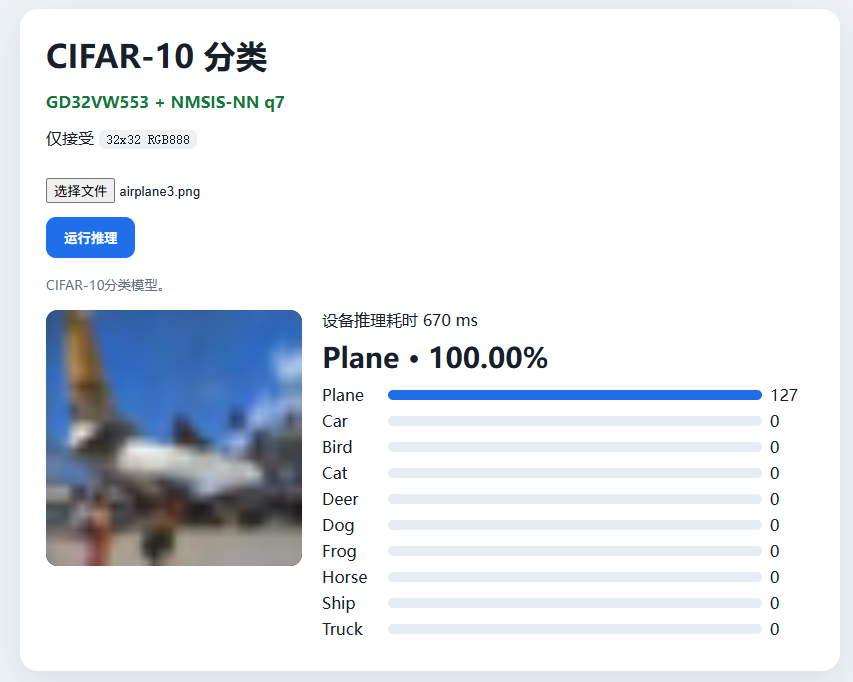

单张图片推理约670ms左右


5. 小结

本项目在 GD32VW553 单芯片平台上实现了从底层驱动、实时操作系统、无线通信到神经网络推理和物联网遥测的完整系统。评测表明，GD32VW553 能够在资源受限的 MCU 环境中同时承载无线网络、Web 服务、MQTT 遥测和小型神经网络推理。


全部评论
暂无评论
0/144
    • 联系我们
    • 服务热线：
    • 客服邮箱：
    • 服务时间：周一至周五 9:00-17:00
    • 联系地址：珠海市横琴新区福临道55号906办公-1

    iCEasy公众号

    iCEasy商城
    品牌索引：
    ams OSRAM AWINIC EPSON iceasy MK Founder Molex Murata Electronics Nexperia NVIDIA Orient Quectel RENESAS Seeed Studio StarFive WUQI 高通 海凌科 航顺芯片 华润微电子 江波龙 乐鑫 灵动微电子 日清纺微电子 上海贝岭 圣邦微电子 树莓派 小华半导体 野火 萤火工场 兆易创新 正点原子
    友情链接 （400-626-1616转1）
    热门友链：
    中电港 芯查查 iCEasy商城海外站
    原厂友链：
    Phytium飞腾 兆易创新GD32 物奇微电子 小华半导体 艾为电子 航顺芯片 扬兴晶振 润石半导体 中国星坤连接 雷卯电子TVS ESD 米客方德 飞虹半导体 台容积电 轮趣科技 中科云 进迭时空 赛昉科技 奥伦德 龙芯中科 移柯通信 庆科信息
    行业友链：
    元器件商城
    © 粤公网安备44040002000016 营业执照
    增值电信业务经营许可证
